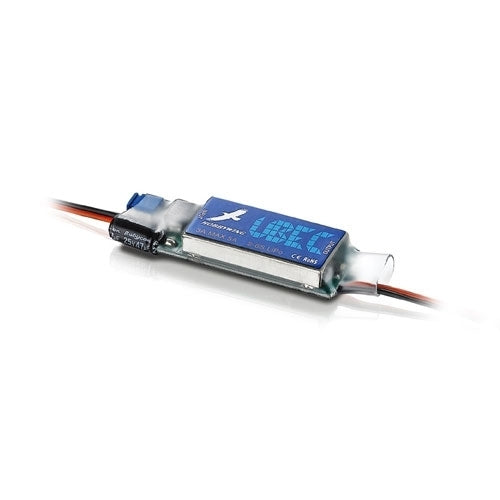

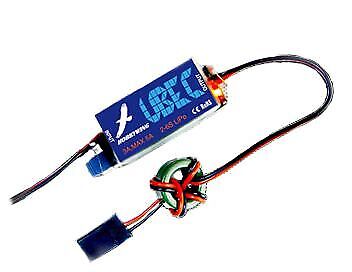

Hobbywing 7.4v-22.2v Input 5v/6v 3A Output UBEC
Overview
This UBEC is an external switching mode DC-DC regulator; it draws DC voltage from 2-6S LiPo battery, drops it to a voltage level that is suitable for your receivers and other electronic devices, and keeps providing the stable current output of 3Amp. It’s compatible with different brands of ESCs.
Description
The 3A-UBEC is a switch mode DC/DC regulator, it outputs a consistent safe voltage for the receiver, gyro and servos.
It is very suitable for RC helicopter and other RC models especially when the built-in BEC in the speed controller has a very limited output capability
Features
- Uses an advanced switch mode DC-DC regulator IC
- The output is powerful enough even working with 4S to 6S LiPo battery
- Battery polarity reversal protection
- A metal shield and a filter significantly reduce the electromagnetic interference
- The working status is shown by an LED, it lights when the UBEC works normally
Specifications
- Output Voltage: 5V@3A or 6V@3A (Selectable by using a jumper connector)
- Continuous output current: 3 Amps
- Input: 5.5V-26V (2-6S Lipo or 5-18 cells NiMH /NiCd)
- Size: 43mm x 17mm x 7mm (L x W x H)
- 1.5 Weight: 11g
- Ripple: less than 50mVp-p (@2A/12V input)
