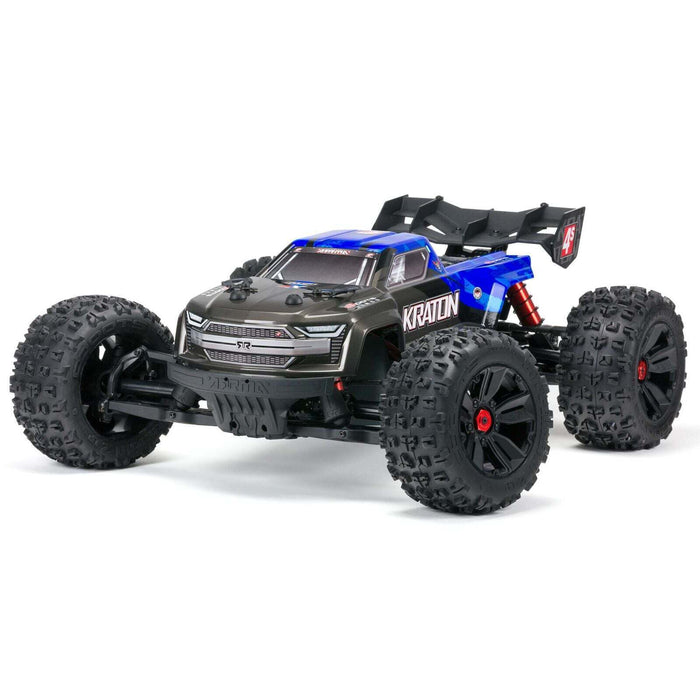

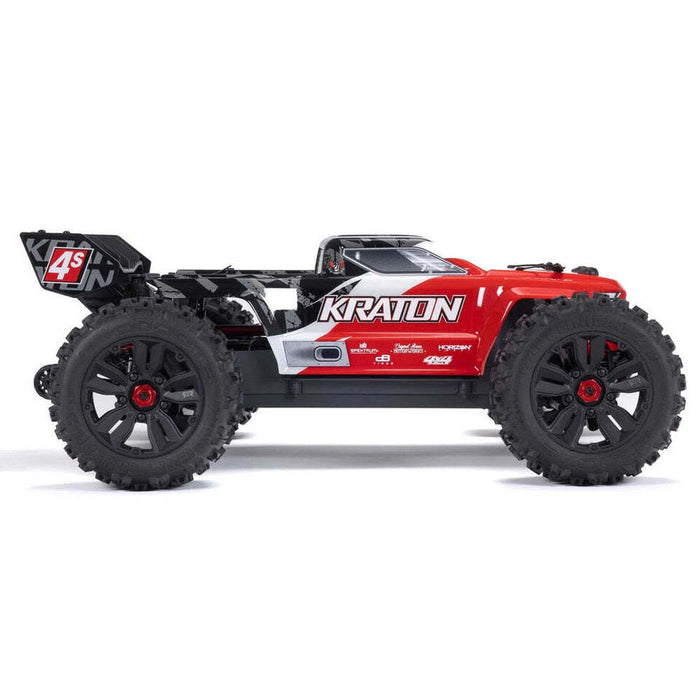

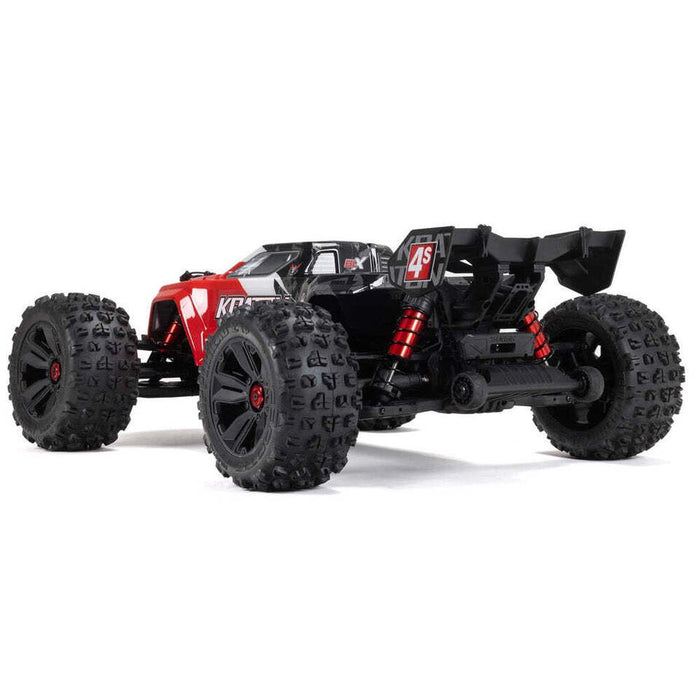

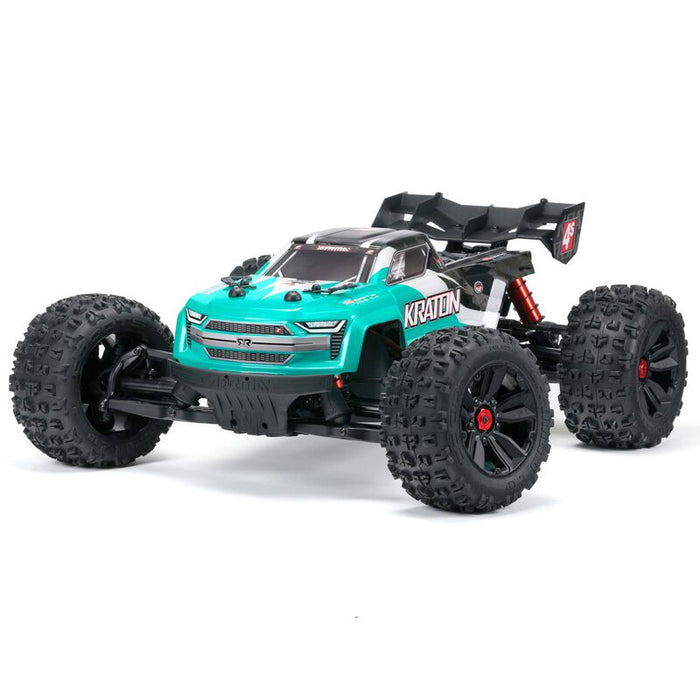

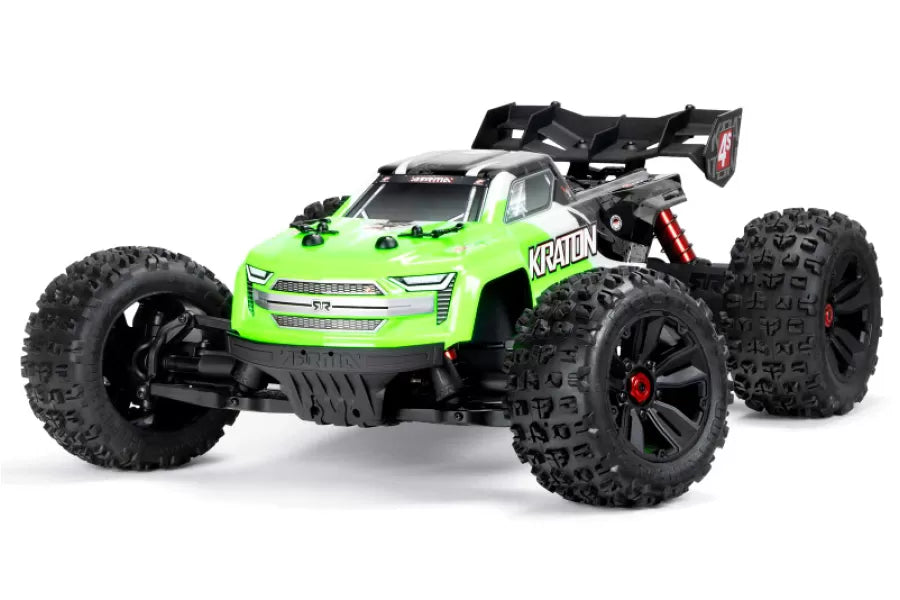

Arrma Kraton 1/10 4x4 BLX 4S Brushless RC Monster Truck - V2

The KRATON® 4X4 4S BLX Speed Monster Truck RTR marks the next evolution of the ARRMA® 4X4 4S platform — longer, wider, and tougher than the previous chassis for no-holds-barred bashing action, with a Spektrum™ 4S brushless power system factory-installed.

The original ARRMA® KRATON® 4X4 4S BLX Speed Monster Truck provided the perfect middle ground between the agile 3S BLX vehicles and bigger, more powerful 6S BLX machines. It delivered affordable performance for brushed bashers looking to upgrade and for any driver wanting ARRMA® toughness and speed.

This new version marks the next evolution of the capable ARRMA® 4X4 4S platform — longer, wider, and tougher than the previous chassis for even greater stability and control. It also includes a full package of Spektrum™ radio electronics and is the first ARRMA® 4X4 to come equipped with a Spektrum™ 4S brushless power system.

Overview

Unleash the beast with the ARRMA Kraton 4S, a high-performance basher that delivers next-level ARRMA toughness, speed, and untamed power. This formidable truck sits between agile 3S BLX bashers and powerful 6S BLX machines, offering a thrilling blend of performance and manoeuvrability. The Kraton 4S reinforced chassis features a center diff module for unrivalled traction, while wishbone dirt guards, out-drive protectors, and taller side guards shield it while bashing. The enhanced 4S-capable Spektrum brushless power system delivers punch and improved driving feel, complemented by a higher torque Spektrum S662 metal-geared digital servo for sharpened handling. The Kraton features lofty shock towers, long oil-filled shocks, wide arms for plush suspension travel, steel diff gears, and EXB CVD front and rear driveshafts for unstoppable power delivery.

The signature ARRMA easy-access modular design ensures rapid maintenance. Crafted from high-quality rubber, the dBoots COPPERHEAD 2 LP tyres feature an aggressive tread pattern for firm grip on any surface. The truck body boasts a robust rear wing and comes in two vibrant colour schemes. Front and rear bumpers protect against impacts, while a wheelie bar with rubber tyres adds stunt potential. Fully ready-to-run, the Kraton 4S includes a 3-channel Spektrum SLT3 2.4GHz radio and dual protocol SR315 receiver. Charge up your preferred battery and unleash a blasting adventure!

Description

The KRATON 4S BLX RTR offers ARRMA speed and strength in the ideal size for any monster truck basher — with a center diff for the ultimate grip, an updated Spektrum brushless system for more punch, added dirt protection, and two more fresh colour choices.

With massive tyres, a menacing truck body, and a long wheelbase for stability, the 1/10 scale ARRMA KRATON 4S BLX Speed Monster Truck proudly takes its place between agile 3S BLX bashers and mighty 6S BLX machines. The 4S BLX platform lets you bash with next-level ARRMA performance, toughness, and speed, without breaking your budget. This KRATON comes fully factory-assembled on the latest evolution of the 4S BLX — and it’s prepared to blast like never before!

The strengthened, diff compatible chassis now includes a center diff module that holds an aluminum-cased center differential. It provides the ultimate traction for any surface conditions. Shielded to the max with wishbone dirt guards, outdrive protectors, and taller side guards, the KRATON 4S BLX stands up to furious blasting over dirt, through grass, and on paved surfaces, all with equal ease.

ARRMA has amped up its 4S-capable Spektrum brushless power system for intense all-road action. A cool-running Spektrum Firma 120A Smart V2 waterproof ESC with IC5 connectors (EC5 compatible) adds punch and improves the driving feel. Steering has been strengthened with a higher torque Spektrum S662 metal-geared digital servo, sharpening the KRATON 4S BLX truck’s high-speed manoeuvring capabilities.

These updates join a vast arsenal of proven ARRMA 4S BLX features — from high shock towers, long oil-filled shocks, and wide arms for plush suspension travel, to steel diff gears and EXtreme Bash CVD front and rear driveshafts for unstoppable power delivery. The KRATON 4S BLX also incorporates the signature ARRMA easy-access modular design to make routine maintenance fast and simple.

Made of high-quality rubber, the vented dBoots COPPERHEAD 2 LP tyres have an aggressive, chunky tread pattern that finds a solid grip almost anywhere. The truck body has a tough, injection-molded rear wing and comes factory-finished in your choice of two fresh colour schemes. Front and rear bumpers protect against impacts and a wheelie bar with rubber tires provides stunt potential.

Fully ready-to-run, the ARRMA KRATON 4S BLX Speed Monster Truck comes with a 3-channel Spektrum SLT3 2.4GHz radio and dual protocol SR315 receiver. Charge up your choice of recommended battery and blast with the best!

Features

• Improved traction from an aluminium-cased center differential
• Updated 4S LiPo capable Spektrum brushless power system
• Additional dirt protection for even more toughness
• Updated chassis with center diff module, hinge pin bracing, and dirt drain
• Higher torque Spektrum S662 metal-geared digital servo with alloy case center

Key improvements

• Metal center differential for increased traction
• Updated chassis with Centre Diff module, hinge pin bracing, and dirt drain
• Outdrive protectors, taller side guards, and wishbone dirt guards
• Higher torque Spektrum S662 metal-geared digital servo with alloy case center
• Cooler running Spektrum Firma 120A V2 Smart ESC
• Improved battery retention system with wire clips

LONGER CHASSIS

For this new version of the KRATON® 4X4 4S BLX Speed Monster Truck, ARRMA® engineers lengthened the vehicle to 21.54 inches – 0.74 inches longer than previous model — for increased stability and control.

The Spektrum S662 digital, waterproof steering servo, equipped with full metal gears and delivering an impressive 17 Kg-cm of torque at 7.4V, effortlessly handles the demands of high-speed, all-terrain bashing. This robust servo also features an industry-standard 25T spline servo horn for compatibility with a wide range of servo savers and horns.

At the heart of the Kraton lies a meticulously engineered brushless power system, featuring an efficient Spektrum Firma 2400Kv brushless motor seamlessly integrated with an upgraded, cool-running Spektrum Firma 120A Smart V2 waterproof ESC. This advanced ESC boasts cutting-edge IC5 connectors, which has compatibility with EC5 connectors as well. Unleashing the beast's true potential, the Kraton can effortlessly reach speeds beyond 88 km/h when equipped with a 4S LiPo battery and an optional pinion gear, available separately.

Distinct, easily detachable chassis modules for the powertrain, electronics, and differential components streamline routine maintenance. The Kraton chassis has been enhanced to accommodate a centre differential module and now incorporates hinge pin bracing and a dirt drain.

Designed to withstand the rigours of extreme bashing, the Kraton boasts all-metal EXB gear diffs. An additional aluminium-cased centre differential further enhances its traction capabilities, ensuring unrivalled performance and durability across almost any terrain.

The dBoots Copperhead 2 LP tyres are engineered with innovative vents to effectively disperse water, enhancing their longevity and resilience. Their multi-surface, chunky tread pattern ensures exceptional traction on a wide variety of terrains, from rugged off-road tracks to smooth paved surfaces. These high-performance tires are mounted on durable 3.8” MT black multi-spoke wheels featuring precision-crafted CNC-machined, red-anodised 17mm hubs for unwavering performance.

Equipped with a comprehensive array of protective measures, including dirt guards for the wishbones, out-drive protectors, and taller side guards, the Kraton is now better equipped than ever to handle the rigours of high-speed, all-terrain bashing.

SPEKTRUM SLT3 2.4GHz 3-CHANNEL TRANSMITTER

The included Spektrum SLT3 transmitter is ergonomically designed for fatigue-free bashing and has a foam wheel for precise fingertip control. Using the throttle limiting function, new RC drivers can limit top speed to 50% or 75% of the monster truck’s full potential until they’re ready to unleash it all.

SPEKTRUM SR315 3-CHANNEL DUAL PROTOCOL RECEIVER

Compatible with SLT and DSMR protocols, the included Spektrum SR315 3-channel receiver offers outstanding range and fast response rate. It’s also Smart telemetry compatible (in DSMR mode and using the Spektrum Dashboard app).

FINISHED TRUCK BODY

The sleek truck body features a tough, injection-molded rear wing and comes factory-finished in your choice of two exciting color schemes. Front and rear bumpers protect against impacts and a wheelie bar with rubber tires provides stunt potential.

Additional proven features

• Fully assembled, finished, and ready-to-run
• Spektrum SLT3 2.4GHz transmitter and dual protocol SR315 receiver
• Spektrum Firma 3668 2400Kv brushless motor with ARRMA heatsink and cooling fan
• EXB all-metal gear diffs
• EXB CVD front and rear driveshafts
• Wide 17.72 inch front and rear track for aggressive bashing
• Long 21.54 inch chassis and 13.98 inch wheelbase for stable handling
• Rubber shielded bearings throughout
• Center support brace for maximum durability
• Double wishbone front and rear suspension
• Oil-filled aluminum shocks with silicone O-rings
• High shock towers for longer travel
• Steering system with stone clearance
• Tough black multi-spoke wheels
• CNC machined, red anodized 17mm wheel hubs
• Multi-terrain dBoots COPPERHEAD 2 LP vented low-profile tires
• Adjustable turnbuckles
• Adjustable ride height
• Adjustable body mounts
• Front bumper and protective lower front and rear skid plates
• Wheelie bar with rubber tires
• 2-Year limited warranty (see website for details)

Specifications

Contents

• (1) ARRMA KRATON 4S BLX 4WD 1/10 Scale Speed Monster Truck RTR
• (1) Spektrum Firma 120A V2 Smart Waterproof* ESC
• (1) Spektrum Firma 3668 2400Kv Brushless Motor
• (1) Spektrum S662 Metal-Geared Waterproof* Digital Servo
• (1) Spektrum 2.4GHz SLT3 Transmitter & SR315 Receiver
• (4) AA Batteries
• (1) Instruction Manual
• *For details on waterproof standards, please refer to the instruction manuals.

Requires

• 2 x 2S 7.4V or 1 x 3S 11.1V or 1 x 4S 14.8V Hardcase LiPo Battery
• Compatible LiPo Balance Charger
