Tamiya 1/10 TT-02 Ford Mustang GT4 Electric On Road RC Car Expert Built - Everything included RTR
Tamiya 1/10 TT-02 Ford Mustang GT4 Electric On Road RC Car Kit w/o ESC - 58664A (Expert Built RTR).
Inspired by the Ford Shelby GT350R-C, the Ford Mustang GT4 has been designed and engineered jointly by Ford Performance and Multimatic Motorsports to compete in sports car championship racing series globally, including the IMSA Continental Tire SportsCar Challenge, Pirelli World Challenge GTS/GT4, and GT4 European Series.

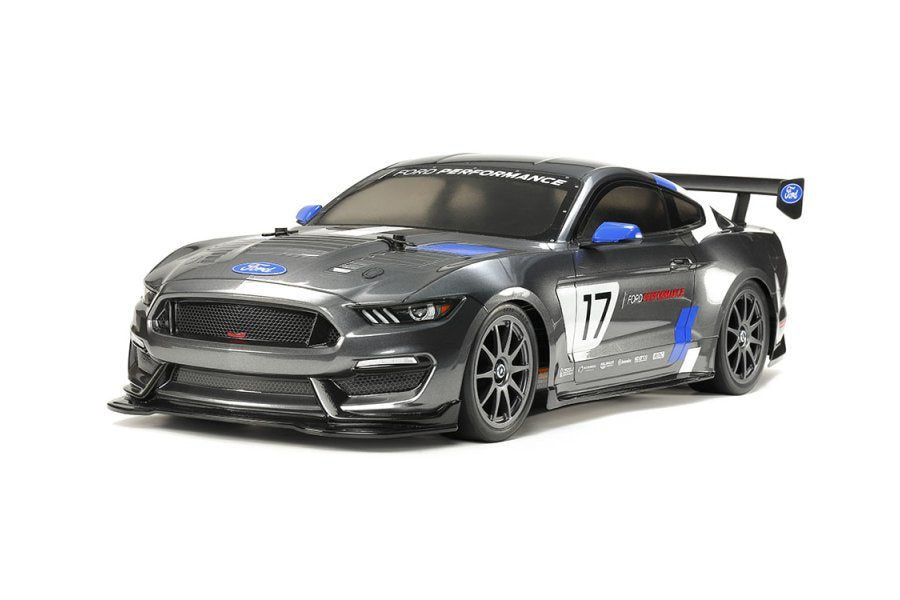

The Tamiya Ford GT4 faithfully captures this sleek racing car as a 1/10 scale radio control replica. The highly-detailed polycarbonate body sits atop the easy-to-build Tamiya TT-02 chassis that you can customise for added performance!

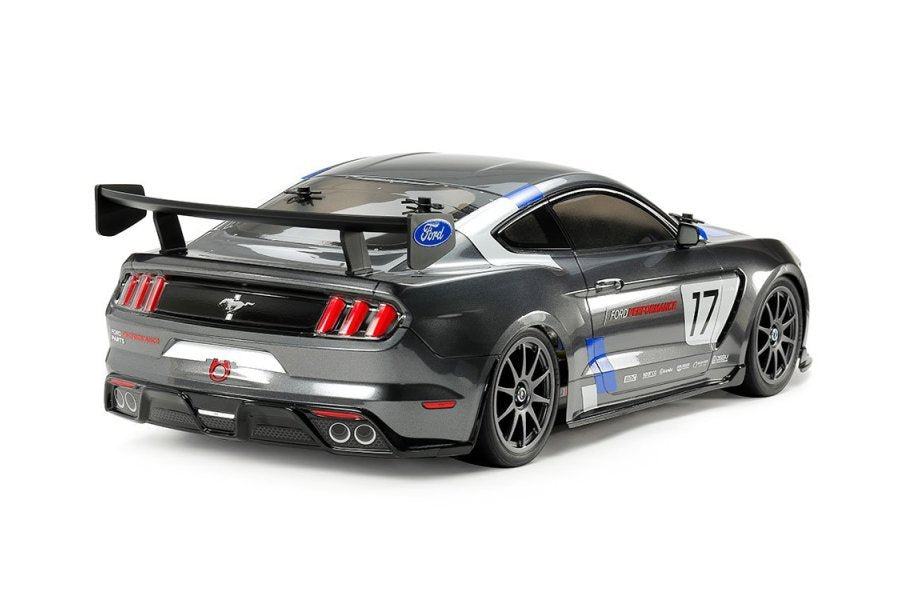

The rear of the vehicle has a powerful 4-piece muffler, diffuser, and large wing.

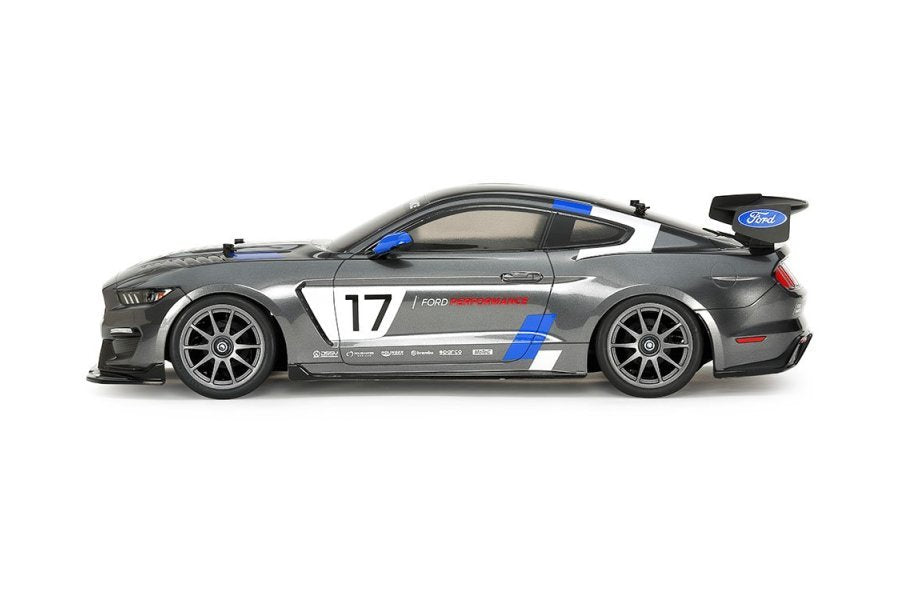

The large fastback coupe style that is typical of American sports cars.

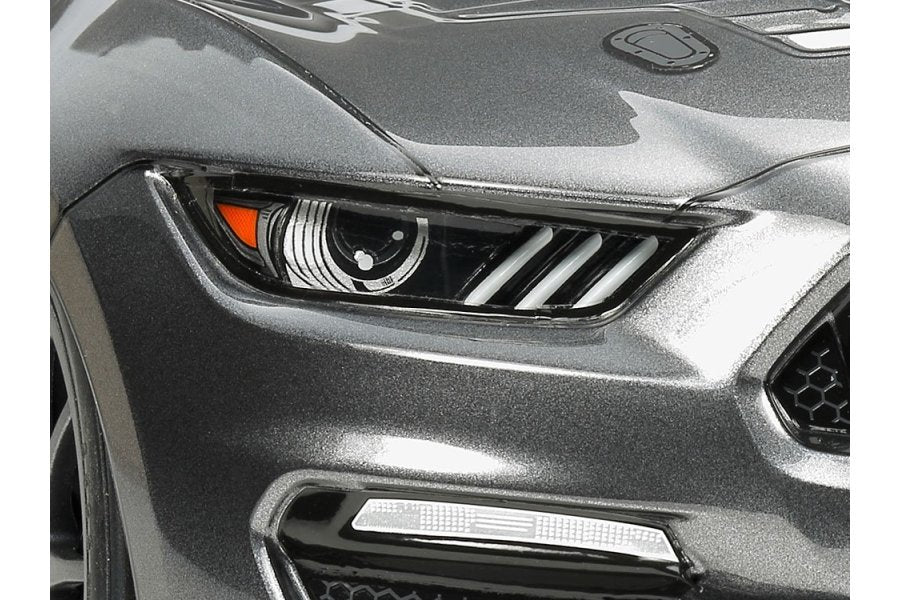

The head-lights are reproduced with a separate polycarbonate light-cases and decals.

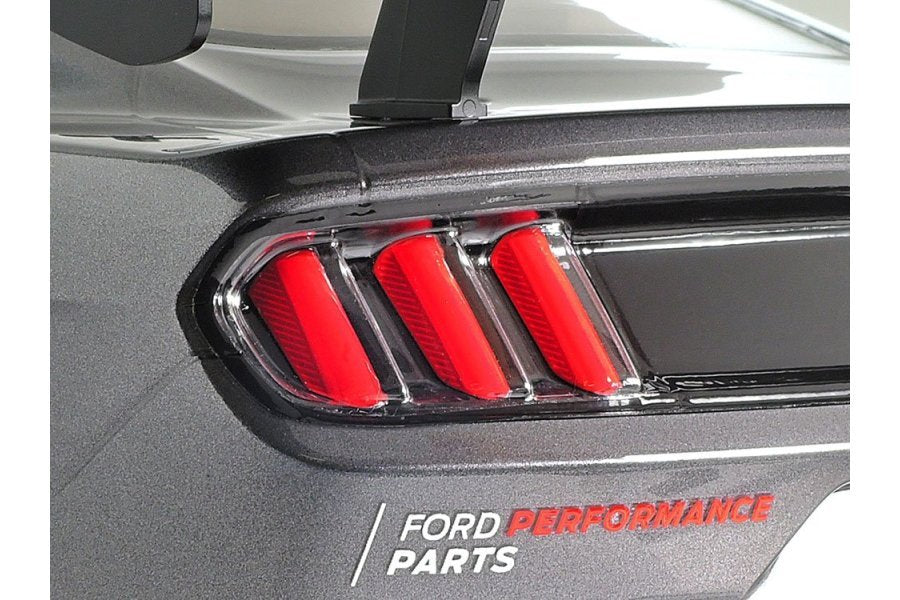

A light-case is also available as a separate polycarbonate part for the tail-lights, with its distinctive shape.
TT-02 Chassis: Adaptable, Balanced Shaft-Drive 4WD
The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. Gun metal colour 10-spoke rims and slick tyres make for a racy finish.
Features
- Highly Detailed 1/10 Ford Mustang GT4 Clear Body
- Stickers are included to create an original livery, as are masking stickers for use when painting
- Wheel arches are pre-cut out for a simpler body assembly experience
- The beginner-friendly, highly adaptable TT-02 is a versatile and easy to maintain shaft-driven 4WD chassis
- Super Tough Bathtub Type Chassis
- Balanced Longitudinal Chassis Layout
- Adjustable Wheelbase
- Shaft-Driven 4WD System
- Front/Rear 4 Bevel Resin Differentials
- 3-Piece Steering Tie-Rod System for Superior Handling
- 4-Wheel Double Wishbone Suspension
- Front/Rear Friction Shocks
- Powerful Brushed 540 motor
Specifications
- Length: 459mm (18.0")
- Width: 188mm (7.40")
- Height: 130mm (5.11")
- Wheelbase: 257mm (10.1")
- Box Size: 49 x 23 x 15cm
- Body Shell: Clear Polycarbonate
- Chassis Type: TT-02
- Construction Type: Assembly Kit
- Motor: Type 540 Brushed
- Electronic Speed Control (ESC): Not Included
- Motor Mount: Longitudinal
- Wheel Drive: 4WD
- Gear Ratio: 8.27:1
- Friction Shocks: Front & Rear
- 4-Wheel Independent Double-Wishbone Suspension
- Terrain Use: On Road
| Car | |
|---|---|
| Assembly Type: | Kit |
| Max LiPo Power: | 2S (7.4v) |
| Size (Scale): | 1/10 |
| Skill Level: | Beginner |
| Power Source: | Electric Brushed |
| Chassis Type: | Car |
| On/Off Road: | On Road |
| Drivetrain: | 4WD |
Included;
- FlySky GT2B 2-Channel R/C Radio or similar with receiver ($79)
- Brushed Waterproof 60A ESC with Tamiya plug - Hobby Wing HAWPWP1060, Quicrun 30120201 WP60 ($59) or Surpass 79794 ($50)
- NiMh Battery ($35) or Lipo 7.2V Battery (from $59)
- Suitable Charger NiMh $39 or LiPo balance charger (from $35)
- Steering Servo - Metal geared minimum 9-25Kg (from $45)
- AA batteries for the transmitter
- Poly-carbonate Tamiya spray paint for body shell ($13.95)
