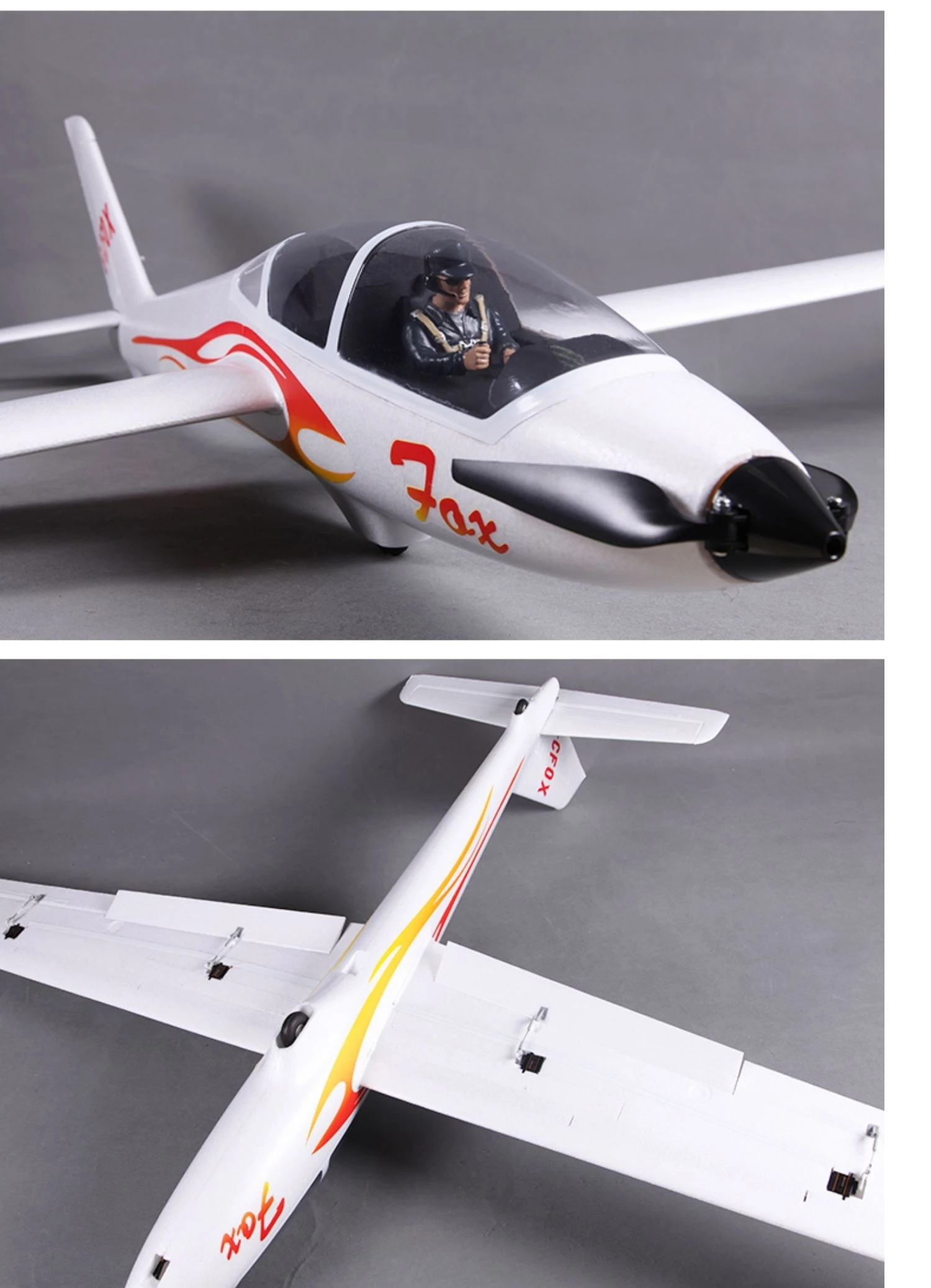

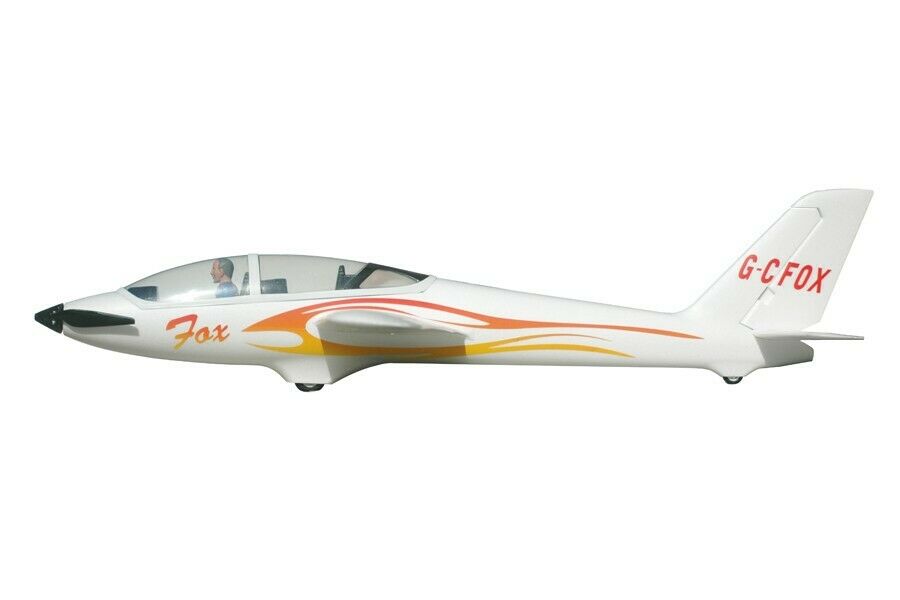

FMS Fox 2300mm V2 Glider with Flaps - PNP
OVERVIEW
FMS has created this wonderfully exciting aerobatic glider in impact absorbing and resilient EPO foam. Ideal for aerial photography!
The mold quality is sublime adding to the efficiency and great looks. Combined with a high powered brushless motor and LiPo battery, gives the budding modeler a new level of high performance excitement.

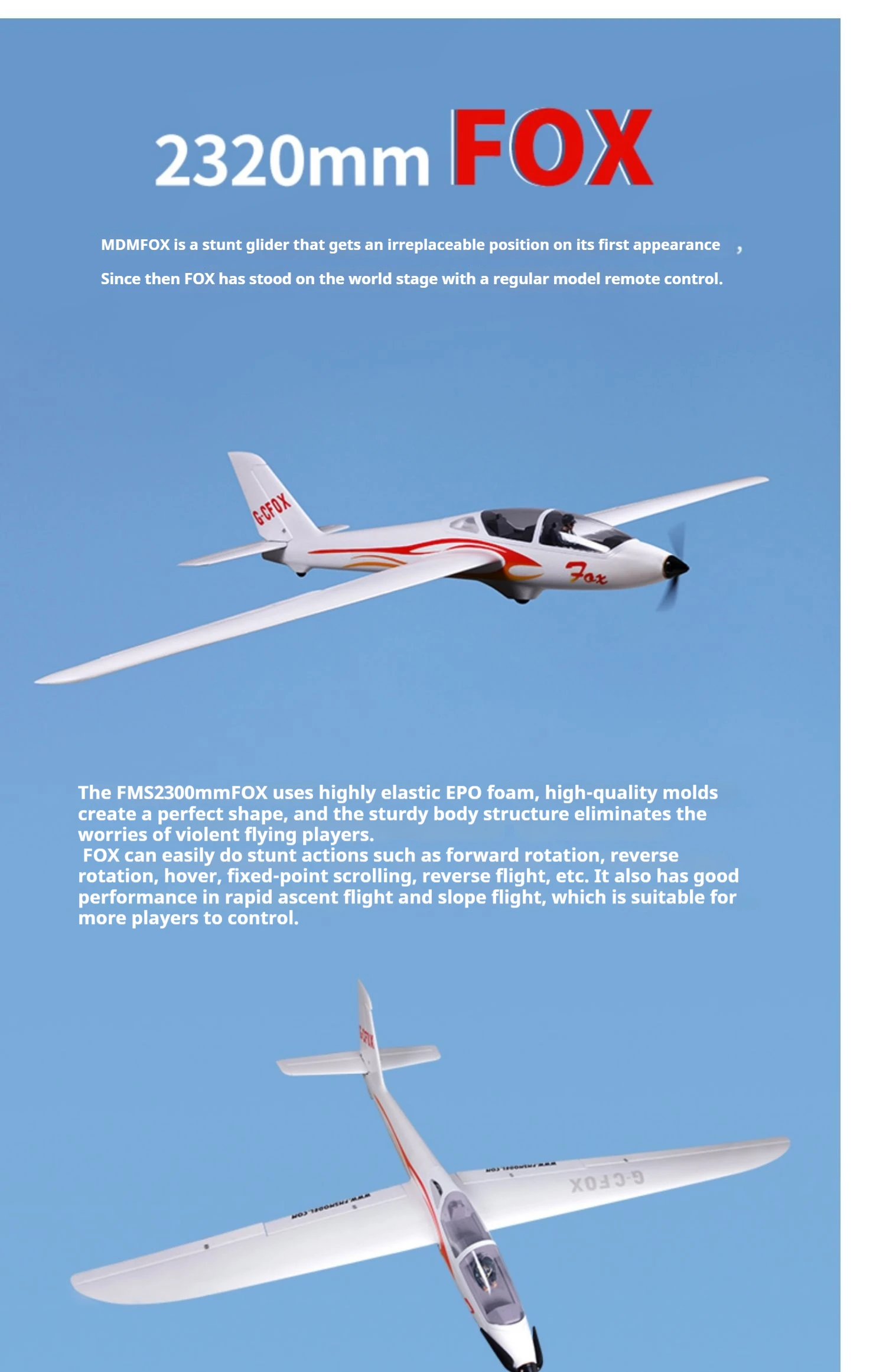

The MDM 1 Fox is a composite unlimited aerobatic glider. At its first public unveiling it managed to place first in non other than the World Championships! Since then it has become a regular aircraft on podiums throughout the world.
Seating two in relative comfort it also performs very well in cross-country even though it only has a glide ratio of 28:1. Sleek and efficient with fantastic unlimited aerobatic flight envelope are attributes that set this glider apart and make it an excellent model for Famous to replicate.
This FMS Fox V2 glider features glass/carbon composite and aluminum tube strengthened wings that are easily removable for transport and a very compact fuselage adding further to the enjoyment of this model.
Positive and negative loops, stall turns, point rolls and inverted flight are all easily performed with this model and it will also perform excellently simply hunting for thermals or slope flying, making it suitable for a wide range of pilots.
FEATURES:

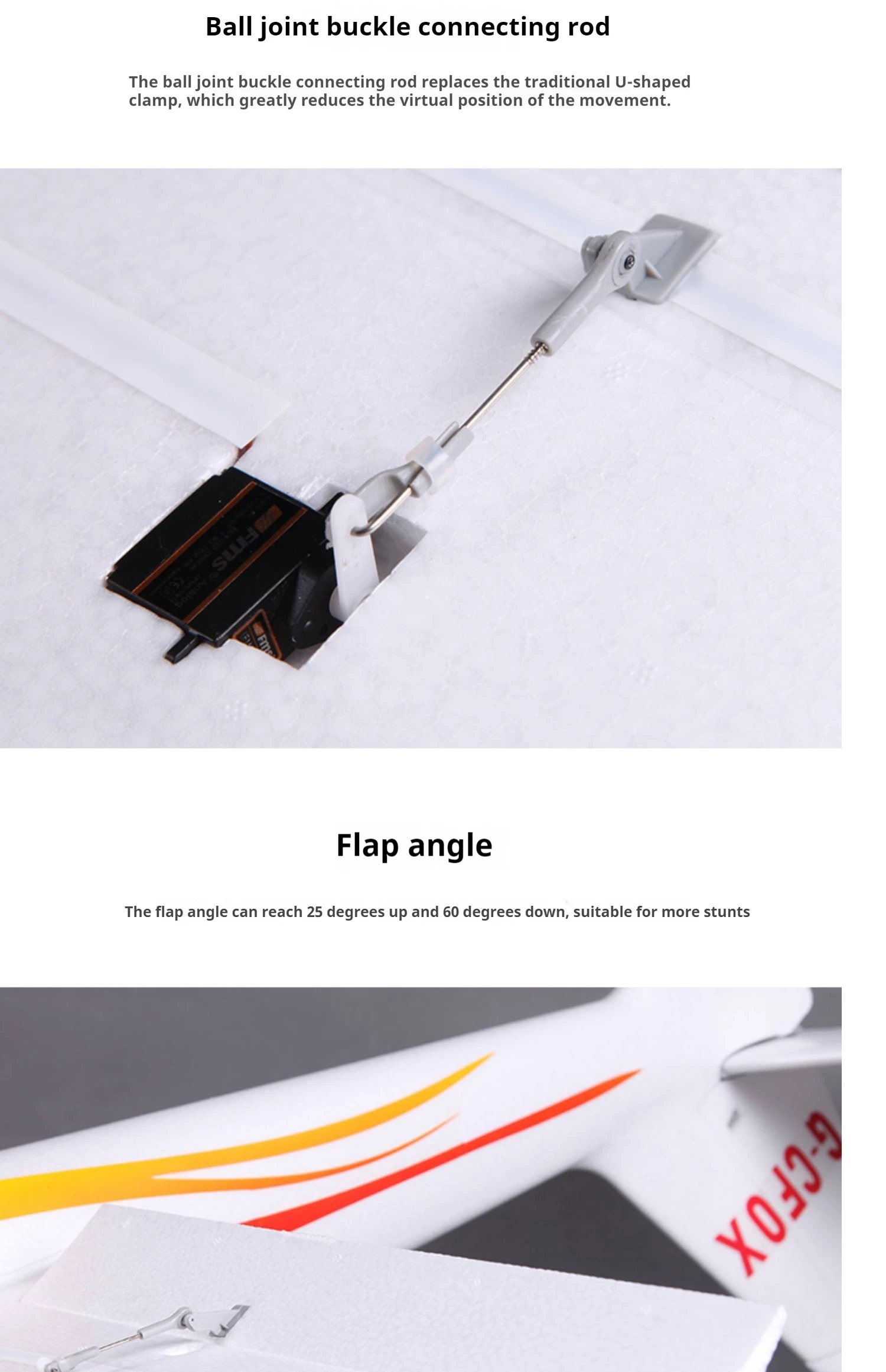

- Ball link connectors are used replacing the traditional clevis
- Flaps up 25 degree and down 60 degree for more aerobatic

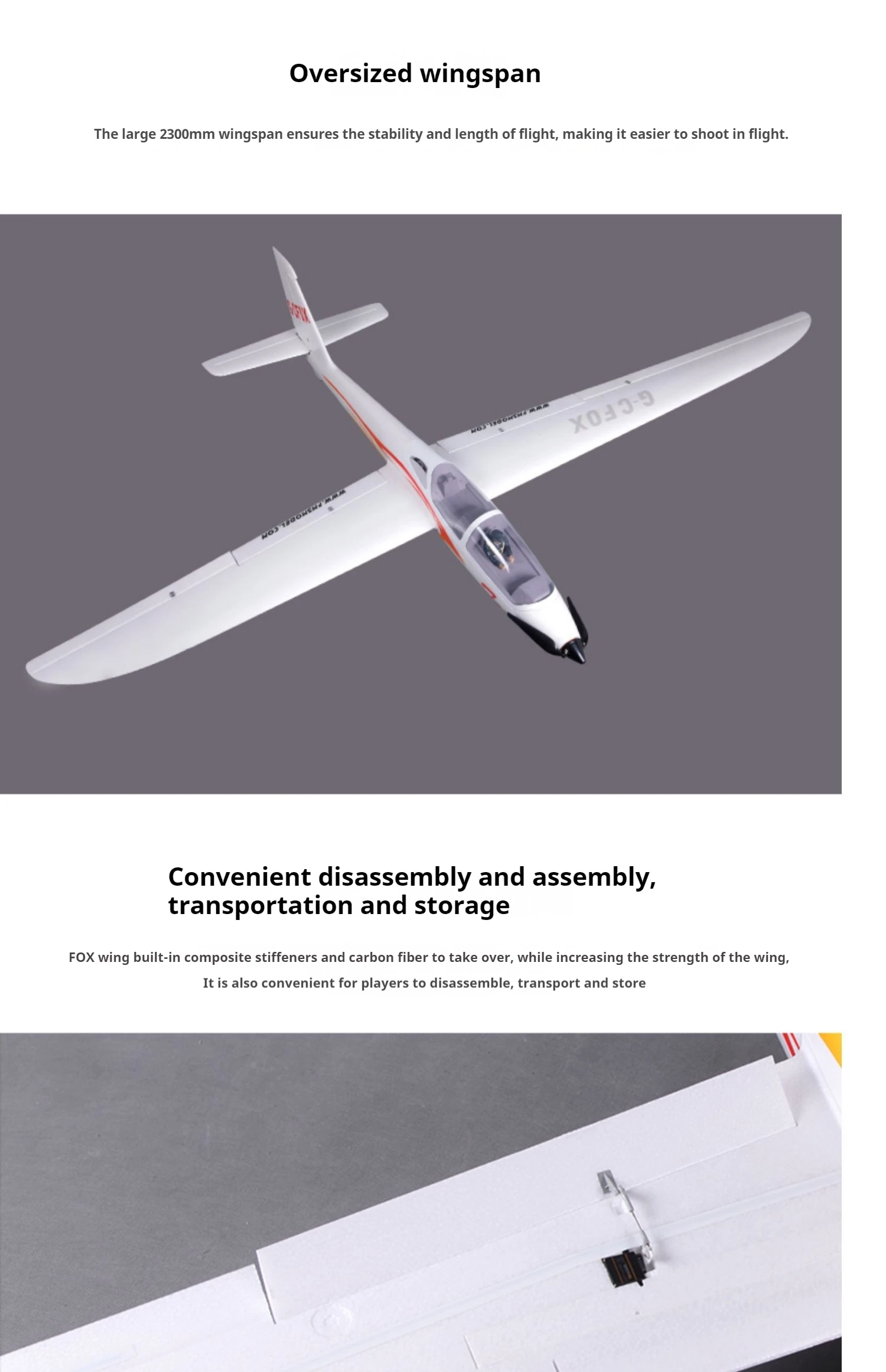

- Huge 2300mm wingspan provides stable flights and long fly times. A perfect platform for aerial photography
- EPO foam construction
- Carbon composite wing reinforcement tube
- Wings can be easily removed for convenient transportation
- Brushless motor, ESC and servos installed (PNP version)

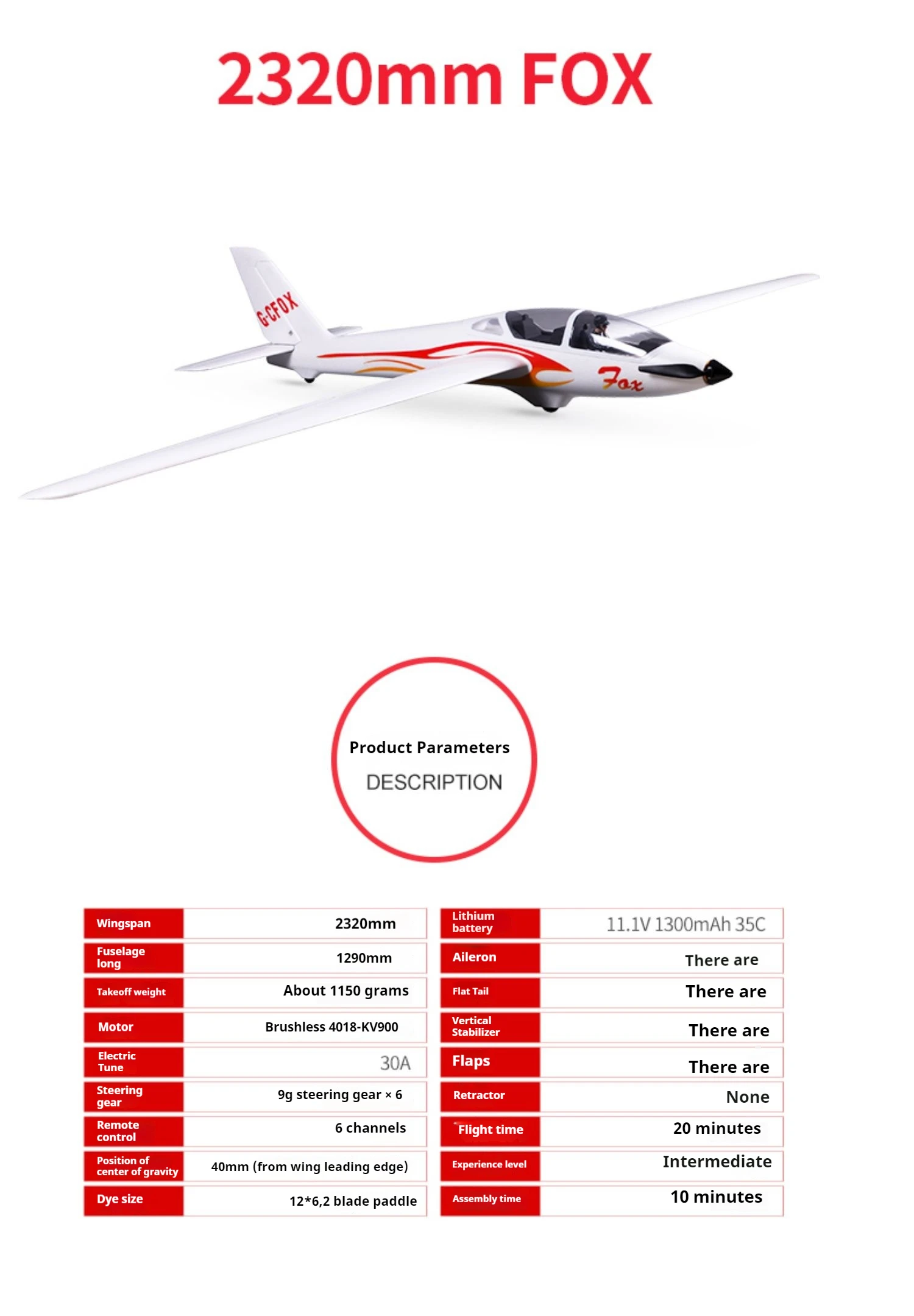

SPECIFICATIONS:
Wingspan | 2,320mm/91.4in |
---|---|
Overall Length | 1,290mm/50.8in |
Flying Weight | Around 1,150g |
Motor Size | Brushless 4018-KV900 |
ESC | 40A Brushless ESC |
Servo | 9g Servo x 6 |
Radio | 6 Channel |
CG (center of gravity) | 40mm (From Leading Edge) |
Prop Size | 12*6 2 blade Propeller |
Recommended Battery | Li-Po 11.1V 1300 mAh 35C |
Aileron | Yes |
Elevator | Yes |
Rudder | Yes |
Flaps | Yes |
Retracts | No |
Approx. Flying Duration | 8 minutes |
Minimum Age Recommendation | 14+ |
Experience Level | Intermediate |
Recommended Environment | Outdoor |
Assembly Time | 1 hour |
Is Assembly Required | Yes |
Material | Durable EPO |
Package Options | PNP |
Requires | PNP Requires Radio System, Battery and Charger |
WHAT YOU NEED TO FLY
- Radio & Receiver
- 11.1V 1300mAh LiPo Battery
- Balance Charger
(FMS023P-V2)
FMS Fox 2300 shipping Information
135.20x35x19.7cm
Gross weight 3.64kg
Volumetric weight 23.31kg
