Hobbywing EzRun Max10 SCT 3660SL 4000Kv Brushless Motor and 120A ESC Combo - 38010201

Hobbywing EzRun Max10 SCT 3660SL 4000Kv Brushless Motor and 120A ESC Combo - 38010201

by technohobbies.com.au
Sold out
$259.00

Hobbywing EzRun Max10 SCT 3660SL 4000Kv Brushless Motor and 120A ESC Combo - 38010201


Overview

Hobbywing have been busy making one of their most popular combo's even better... IT'S NOW WATERPROOF.

They have also worked hard to make this ESC easy to use and program so that anyone can do it.

Universal – This combo features a powerful 4000Kv 3660 brushless motor which fits a wide range of 1/10 4wd off-road RC vehicles like the Traxxas Slash,Stampede and HPI Bullet Trucks. Also included is a compact 120Amp waterproof brushless ESC which makes it the perfect upgrade brushless kit for 1/10 4wd RC model. Even if you're looking for a powerful brushless combo for a scratch build or custom project, this combo is a fantastic option to get the most out of your 1/10 RC model.

Features

High Reliability & Durability:

Built with the most rugged and high-quality components and coupled with cutting-edge firmware, the EZRun MAX10 SCT is able to deliver unmatched power and performance for even the most hardcore of racing applications, but is also responsive enough to protect itself from damage due to overloading due to physical abuse, overuse or even human error.

Great Flexibility & Versatility:

With incredible acceleration capabilities and a rock-solid, stable output, the MAX10 SCT can handle instant full-torque start-ups for wheelies, high-speed racing on straightaways and powering through the bumpiest terrain. The user will have the choice of adjusting the ESC parameters as per his preference and ability.

Applicable for All Weather Conditions:

The waterproof and dust-proof design allows the MAX10 SCT to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.

High Voltage Built-in BEC:

The MAX10 SCT has adopted the world's first HV built-in BEC with an output current of up to 3 Amps and a switchable output voltage of 6-7.4V. The high voltage BEC is designed to handle today's high voltage servos on demand used by 1/10 scale vehicles.

Advanced & Secure Electronic Switch:

The MAX10 SCT features an electronic switch with a lifespan of over 50,000 on/off cycles, housed in a completely waterproof, dust-proof and shock-resistant design.

Regular Firmware Updates Free of Charge:

You can upgrade the MAX10 SCT with the Hobbywing USB LINK software, a multifunction LCD program box and a laptop. Hobbywing updates it's ESC firmware regularly giving you upgraded features more often when available.

Maintenance Free:

The ESC, minus the cooling fan, is basically maintenance free. The cooling fan is designed to be shockproof, which in turn will reduce damage brought on by frequent vehicle big jumps and landings on hard surfaces.

Specifications

Motor:
  • Max Input Voltage: 3S 11.1V Lipo
  • Weight: 262(9.24oz)
  • Motor Diameter: 36mm
  • Motor Length: 60mm
  • Shaft Diameter: 5mm
  • Connector: 4.0mm bullet

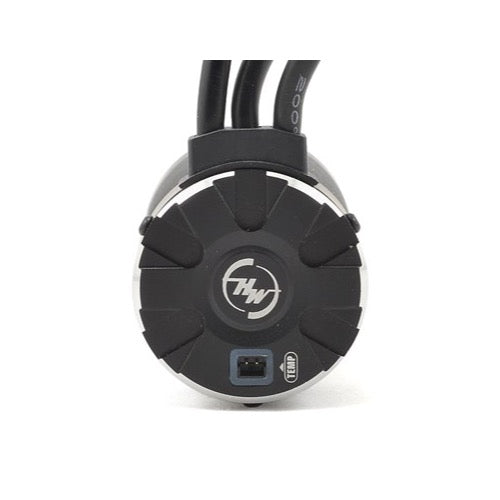

Motor Features:
  • Innovative 4-pole-8-magnet "staggered pole" rotor (Hobbywing-patented) with low cogging effect and torque pulsation greatly improves control feel around corners.
  • Built-in temperature sensor and sensor port protect the motor from damage due to overheat when pairing EZRUN 3660 G2 with a EZRUN MAX10 SCT ESC.
  • O-ring seal fitted between the front end bell and motor case isolates screw holes from inner parts to prevent liquid or dust from getting inside and protect motor from damage.
  • Special design implemented by the motor case (the end attaches to the front end bell) isolates inner coils from outside to protect winding from being damaged by overlong screws.
  • Special technology for temperature control implemented by this motor guarantees less heat more efficiency (efficiency rate of up to 90%).
  • CNC machined aluminum housing, high purity copper windings, advanced rotor structure, high-quality alloy steel output shaft, high-precision bearings for high durability and smoothness.
  • Rebuild-able design (partially rebuild-able) for routine maintenance effectively prolongs the motor life and raises the motor efficiency.
  • Excellent match between EZRUN 3660 G2 with EZRUN MAX10 SCT guarantees users large torque plus a very smooth and linear power band.
    •
  • Innovative 4-pole-8-magnet "staggered pole" rotor (Hobbywing-patented) with low cogging effect and torque pulsation greatly improves control feel around corners.
  • Built-in temperature sensor and sensor port protect the motor from damage due to overheat when pairing EZRUN 3660 G2 with a EZRUN MAX10 SCT ESC.
  • O-ring seal fitted between the front end bell and motor case isolates screw holes from inner parts to prevent liquid or dust from getting inside and protect motor from damage.
  • Special design implemented by the motor case (the end attaches to the front end bell) isolates inner coils from outside to protect winding from being damaged by overlong screws.
  • Special technology for temperature control implemented by this motor guarantees less heat more efficiency (efficiency rate of up to 90%).
  • CNC machined aluminum housing, high purity copper windings, advanced rotor structure, high-quality alloy steel output shaft, high-precision bearings for high durability and smoothness.
  • Rebuild-able design (partially rebuild-able) for routine maintenance effectively prolongs the motor life and raises the motor efficiency.
  • Excellent match between EZRUN 3660 G2 with EZRUN MAX10 SCT guarantees users large torque plus a very smooth and linear power band.

    • ESC:



    • Max Input Voltage: 2-4S LiPo/6-12 Cells NiMH
    • Amp Rating: 120A
    • Brake: Proportional with Adjustable Braking Force
    • Reversible: Yes - with lockout
    • Low Voltage Cut-Off: Yes, programmable
    • Size: 49.0x39.5x34.7mm
    • Weight w/ Wires: 105g
    • Output Motor Connectors: 4.0mm bullet

                                                                                Specifications
                                          ESC (Electronic Speed Controller)
    For Motor Type: Brushless
    Max Voltage: 14.8
    Continuous Amps: 120
    Motor Connectors: 4mm Bullet
    Battery Connector: N/A
    LiPo Cut-off: Yes
    Programmable: Yes
    Waterproof Design: Yes
    Cooling Method: Fan
    BEC Voltage: 6
    Dual Motor: No
                                       Motor
    Motor Type: Brushless
    Can Length (mm): 60
    Can Diameter (mm): 36
    KV (RPM/V): 4000
    Shaft Diameter (mm): 5
    Turns: N/A



    HW38010201
