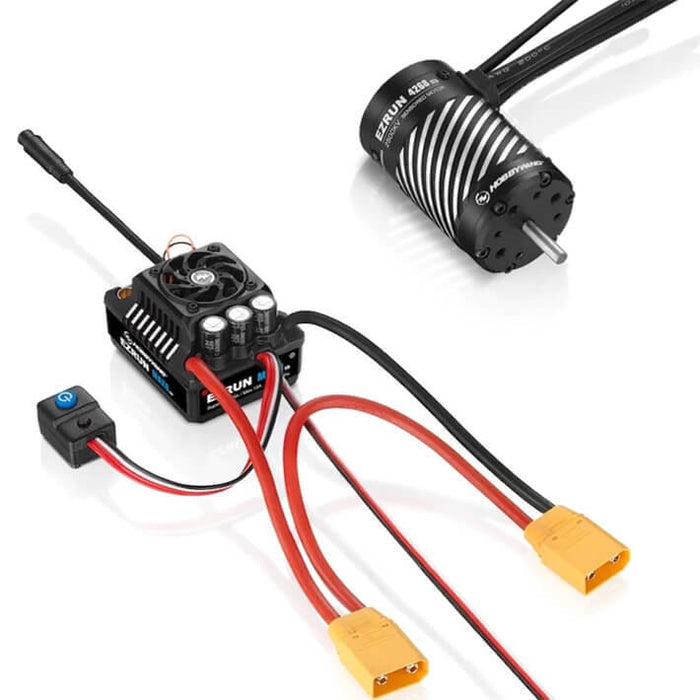

Hobbywing EzRun Max8 G2 4268 & 2500Kv Brushless Motor and ESC Combo

Features

• The ESC uses a special process, coupled with an innovative waterproof design, to increase waterproofing and dust-proofing performance in different climates. It is easy to deal with the harsh conditions containing sediment, ice, snow, and water accumulation.
• Built-in ultra-powerful switch mode BEC with a continuous current of 6A, an instant 15A, and support for 6V/7.4V/8.4V switching, supporting a wide range of powerful and high-voltage servos.
• Equipped with the most advanced and safe electronic switches. The traditional mechanical switch protects and prevents dust, humid and other harsh environments, contact rust, and violent impact (such as flying slope landing) caused by the automatic closure of mechanical switches and other issues.
• Support the 32-degree turbo timing setting. When used with the matching motor (such as EZRUN 4278SD), the maximum rpm can be increased by about 25%, easily winning your rival. • Multiple protection functions: battery low voltage protection, ESC and motor overheat protection, signal loss protection, and current protection.
• Support LED program card, LCD G2 program box, OTA programmer (Note: optional) to set the parameters of the ESC.
• Real-time data logging to view various running data on the HW LINK app using the OTA Bluetooth module.
• Support the firmware upgrade of the ESC (The multi-function LCD G2 program box or OTA Programmer is needed to purchase), you can enjoy the latest functions.

Specifications

ESC Specifications

• Scale Vehicles: 1/8th
• Cont./Peak Current: 160A / 1050A
• Motor Mode: Sensored and sensorless brushless motor
• Input: 3-6S Lipo
• Motor Limit 4S Lipo: KV≤3000; 6S Lipo: KV≤2400 4278 size motor
• BEC Output: 6V / 7.4V / 8.4V adjustable, continuous current 10A (Switch-mode)
• Programming Port: Share with Fab interface
• Switch Mode: Electronic Switch
• Capacitor protection: Yes
• Waterproof: Yes
• Size(L.W.H)mm: 60(L)x48(W)x40.5(H)mm
• Weight(g): 192g
• Input/Output Input：XT90 Output：6.5mm gold plug（female）

Motor Specifications

• Pole: 4
• KV(No-load): 2500KV
• R. (Ω): 0.0065Ω
• Current No-load（A）: 4.8A
• Motor D.&L（mm）: 42mm / 68mm
• Shaft D.&L of the projecting part（mm）: 5mm / 18.5mm
• LiPo(S): 3-4S
• W (g): 355g (no wire)
• Applicable: 11/8 off-road，1/10 truck, crawler
• Best match with MAX 8 G2 ESC
