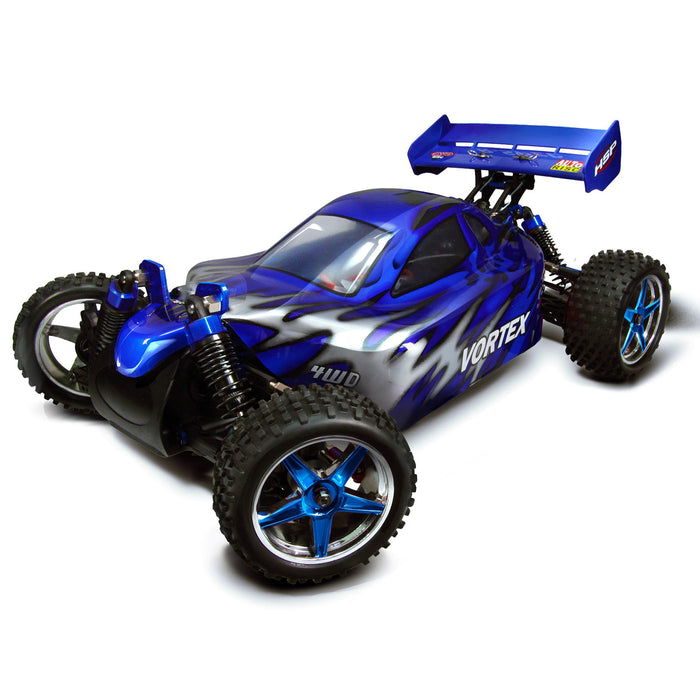

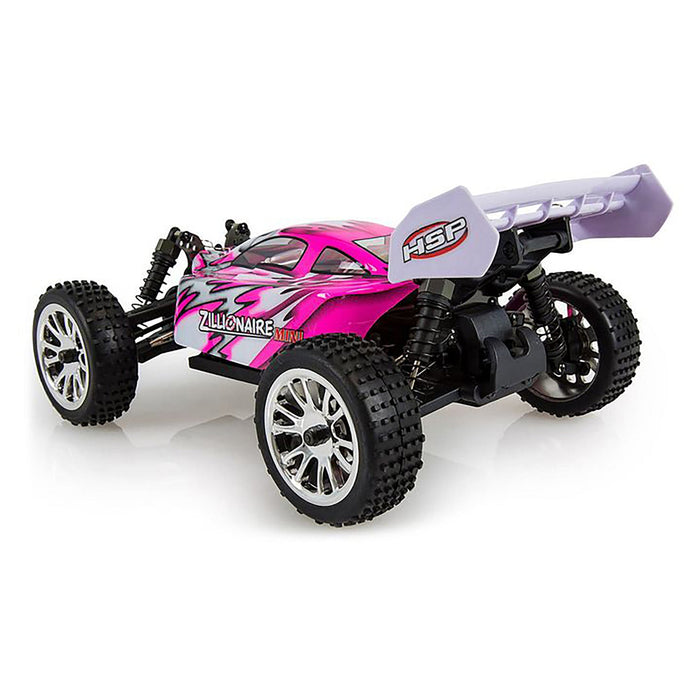

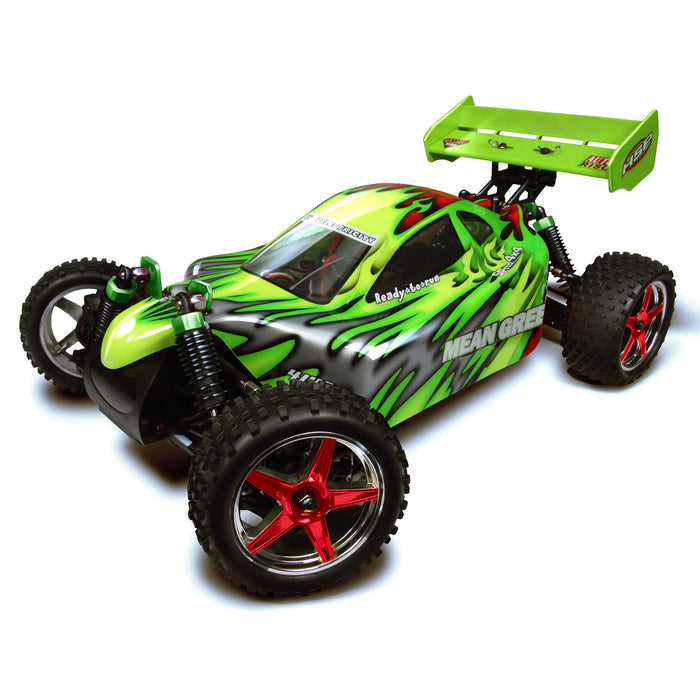

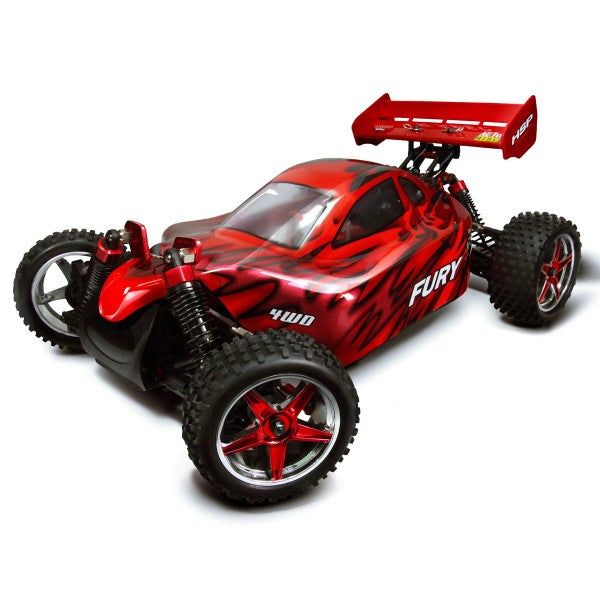

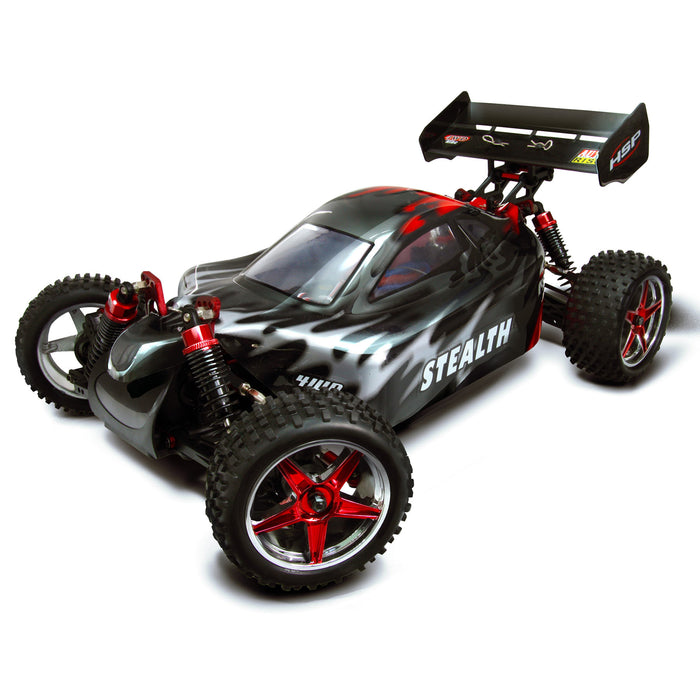

HSP 1/10 Scale 4WD RC Buggy

Overview

These HSP 4WD RC Buggies are specifically designed for beginners who are entering the world of Remote Control (RC) Car driving. With its striking body colours that are highlighted by metallic ghost flames, matching rear spoilers and colour coded aluminium chassis components that perfectly compliment the rest of the car including the centres of the bright chrome wheels,  these RC Buggies perform as great as they look.

The HSP 1/10 Scale brushed Buggies are the ultimate RC cars to get you started in the exciting hobby of RC (Radio Control), it ticks all the boxes and comes with everything you need (except 8 AA batteries for the remote).

HSP has gone all out on this new version of the Buggy; it now includes a 2A fast charger.  Not only that, you can enjoy the great fun that this HSP 1/10 RC Buggy provides on even rainy days as this beast is now 100% waterproof.

To power this electric RC buggy through dirt, grass, mud, water, and anything else you can throw at it is the XL 540 motor!

Features

Upgraded Shock Tower

We also hit the HSP upgrade parts list and added an upgraded shock front tower that is manufactured from a much thicker and stronger grade of aluminium than previous models. The heavy duty construction of this component helps by keeping the shock absorbers aligned to to the correct geometry to provide maximum reaction over harsh terrain.

Adjustable Suspension

All four shock absorbers on the standard HSP models are adjustable and allow the operator to dial in the suspension to suit the type of terrain they wish to drive on. HSP have a unique "c shaped clip" that fits around the shock body just above the spring giving 2 different suspension adjustment settings. Fit this "c clip" to the shock and you can apply more pre-load to the spring for a firmer rate when running on a smooth surface to reduce body roll or take the clip out for a softer rate when running on rugged off road environments where you need all the suspension travel you can get. Rear wheel camber is adjustable along with front wheel camber and toe in - toe out also being fully adjustable via a simple turnbuckle system on the steering arms. Your sure to find the set-up that is right for just about any operating surface.

Harness The Power

Motivation for this Buggy comes from a powerful 540 Brushed motor. The motor is fitted with a metal gear which provides its power to a special nylon main gear that then transfers power to the front and rear differentials giving power to each corner of the vehicle. The 4 wheel drive system provides spirited performance for the novice through to the expert RC driver.

To help with additional cooling functions the motor is fitted with a color coded finned aluminium heat sink to help dissipate heat from the high performance motor and keep it running at optimum levels even in the harshest off-road or trying conditions.

Great Performance with a Powerful ESC

The 40A Electronic Speed Controller supplies current to the motor and on-board electronics with seamless command.  Providing proportional throttle and forward and reverse acceleration along with correctly matched brake force, this HSP ESC generates smooth and reliable operation including steering.

High Torque Steering Servo

Steering duties are commanded by a HSP 6001 6kg "High Torque" steering servo. The servo is also protected from heavy shock loads that can be amplified through the steering components while operating in harsh terrain by a unique "Servo Saver" system. A special spring loaded joint is incorporated into the steering system which helps dampen severe jarring to the servo and helps extend its longevity.

2.4GHz Digital Radio Transmitter System

The "Vortex" is supplied with a quality HSP 2.4GHz digital radio transmitter which means you can run other vehicles utilizing the same system without interference at the same time.

The radio has forward, reverse, left/right along with proportional throttle control and steering travel adjustment.

• 2.4GHz Digital Proportional System (DPS).
• 2-channel transmission.
• Super fast seamless response time.
• Smooth bearing supported steering wheel with auto centering.
• Steering travel adjustment.
• Adjustable throttle sensitivity via rotary dial.
• Steering dual rates adjustable to limit steering travel.
• All dials and switches protected by a weatherproof hatch.
• Low battery warning.
• Servo reverse settings for both channels.
• Superior digital interference rejection.
• Long battery run time.
• Low profile transmission antenna.
• Ergonomic and lightweight design.

2.4GHz Digital 3-Channel Receiver

The supplied 3 channel 2.4 GHz receiver is compact and lightweight and comes matched to the transmitter out of the box. This receiver also offers superior interference rejection and has a failsafe function that can be set by the user if signal is lost or transmitter voltage falls to low.

Ready To Run

This HSP standard size 1/10 buggy comes as a complete package, including an ESC, 2.4GHz radio system, 4 wheel drive system, high torque Brushed motor, aluminium upper deck chassis, aluminum drive shaft and shock mount, oil-filled shock absorbers with progressive springs, 7.2V 2000mAh Ni-MH battery with battery charger. The only extra items required to get this beast on the track are 8 x AA batteries for the transmitter and your ready to rip up your favorite patch of dirt.

Nickel Metal Hydride (NiMh)  Battery

The supplied powerful 7.2V 2000mAh Ni-MH Battery feeds the cart with as much current as the Motor and ESC will ever need to generate spirited driving performance together with realistic operational times.  The approved  battery charger has been included for truly ready to run (RTR) straight out of the box after charging the car battery.

Features

• HSP 2.4 GHz Radio System.
• 4WD drive system.
• High precision motor RC 540 and Waterproof ESC.
• 6kg Hi Torque Steering Servo.
• Oil filled aluminum capped shocks. (color coded blue)
• Oil serviceable gears built-in high quality bulkhead.
• Precision front steering system featuring quick turning response.
• 7.2v 2000mAh Ni-MH battery.
• Off road knobby tires with spoke wheel rims.
• Stylish off road wing (color coded green).


Specifications

• Electric Power Off Road Buggy.
• Length: 400mm.
• Wheel Base: 275mm.
• Ground Clearance: 26mm.
• Height: 160mm.
• Gear Ratio: 8.038:1.
• Motor: RC540.
• Wheel Diameter: 86mm.
• Wheel Width: 32mm Front - 40mm Rear.
• Chassis: ABS Monocoque Chassis.
• Rechargeable battery type: 7.2V 2000mAh.
• Mains Power Battery Charger.
• Speed: With Standard NiMH Battery: 30 Km/h;  7.4V LiPo Battery: 45Km/h
• Recommended for 14+ Age
• Charge vehicle battery for maximum  4 hours only
• Requires 8 x AA Alkaline batteries for handheld transmitter (not included). Do not use rechargeable batteries.
• Never allow rechargeable LiPo battery to run low or fully discharge.
• Allow motor 15 mins cooling time between battery changes and operation.
• Do not operate in inclement weather such as rain, wind or snow.

• It is critical to keep away from moisture and other contaminants.
