Rovan King Motor 260S 1/5 Desert Buggy with 29cc Engine - KSRC002 (2022 Delivery)
Overview - KSRC002
The KSRC002 2WD 2016 Super Sport follows KM's desire for innovation and is the model upgrade over the ever reliable KSRC001 buggy, with additional upgraded parts to make this unit even more rugged and durable along with its all new sleek and aggressive styling
For shipping: Please call 0400 392 417 to obtain a quote or email: sales@technohobbies.com.au

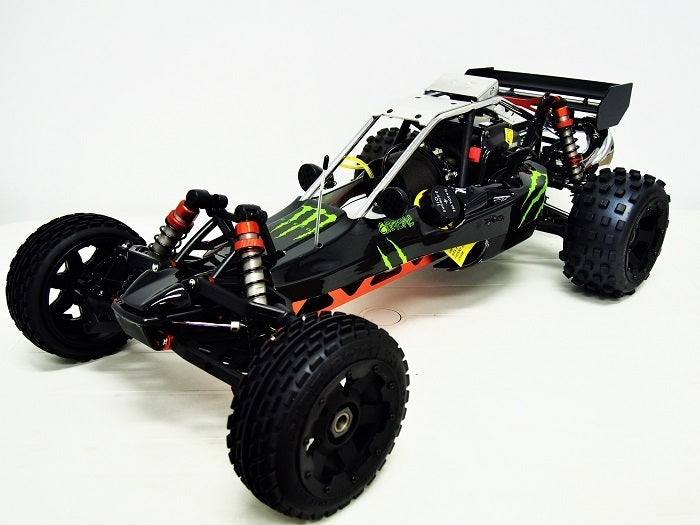

Note: Featured above is the Black body cover. Available Red/Blue body as shown in the box.
The KSRC002 2WD 2016 Super Sport follows KM's desire for innovation and is the model upgrade over the ever reliable KSRC001 buggy, with additional upgraded parts to make this unit even more rugged and durable along with its all new sleek and aggressive styling . This vehicle is fully compatible with HPI 5B, HPI SS, and HPI 2.0 baja buggy models. Most HPI stock parts and aftermarket parts are interchangeable with King Motor buggies.
The King Motor Baja KSRC-002 29 cc 1/5 Scale Gas / Petrol Powered RC Remote Control buggy is rugged enough to take just about anything you can throw at it along with providing outstanding value for money. This 1:5 scale, ready-to-run off-roader is manufactured with extreme attention-to-detail by King Motor Sport.
High Performance 29cc Petrol Engine
At an amazing 817mm in length, this fully assembled Baja Buggy comes equipped with a Petrol 2-stroke, 29cc 4 Bolt engine, adjustable Walbro carburetor and high performance 8000rpm clutch. This motor is also fitted with a King Motor Dragonfly Power Pipe which is capable of propelling this missile to speeds of up to 80 kph.
2.4GHz Digital Radio Transmitter System
This off-roader features an all new MT-3D 2.4-GHz radio system specifically designed for gasoline powered vehicles giving better control and range. This new radio system is a 3 channel full range 2.4GHz FHSS Digital Proportional Computer Radio and its features include: 4-AA Battery holder for light weight and improved balance, Easy to read LCD screen, 10 model memory, Servo reversing on all channels, Dual rate steering, End point adjustment on all channels, Exponential steering and throttle, Anti-lock braking, Digital trim display, Servo sub-trim for steering and throttle, 3 character model naming, Low battery memory retention, Built in Fail-safe, Low voltage alarm.
Super Heavy Duty Servos
The all new KSRC-002 is fitted with a high-torque KM-3318 35 kg/cm steering servo and KM-2013 20 kg/cm throttle servo for improved steering and superior throttle brake control.
Upgraded Components
This huge 10Kg buggy is loaded with fully-adjustable VVC shocks, all new heavy duty billet aluminium shock supports and braces, billet aluminium differential case along with the all new billet aluminium flame design chassis. All these design features make this model one rugged machine.
Heavy Duty Poison Rims & Pioneer Tyres
Fitted with all new design black poison rims and Pioneer Buggy size tyres with medium foam compound allows the KSRC-002 to work great on grass, dirt and most off road surfaces.
Ready To Run
This vehicle comes with a 4-piece body kit that can be replaced if desired, rechargeable onboard 6V 3000mAh Ni-Mh battery and Australian mains power charger . All that is required to get you on the race track fast is 2-Stroke oil, 91 Octane unleaded Petrol and 4 x AA batteries for the transmitter.
- 4 bolt 29CC engine,2-stroke, aircooled
- Dragonfly Power Pipe
- Walbro Carburetor #997
- CMR7H Spark Plug
- High performance 8000rpm Clutch
- 4MM billet aluminium New Fire chassis
- New suspension arm incorporating PA66 material
- Large-bore shocks with shafts & threaded adjusters
- 24MM aluminum alloy extend axle
- 6061-T6 6MM HD Billet aluminium front upper plate 66026
- 6061-T6 6MM HD Billet aluminium rear upper plate 66027-66028
- 6061-T6 Front shock support set J026-27, Front shock tower J029,Front shock brace J030, Rear shock brace J031
- Gear Set: 17T transmission gear and 57T nylon spur gear containing oil
- Drive Shaft: 6MM steel drive shaft
- Wheel & Tyre Set：Pioneer tire with Poison Rim complete 170 x 60mm (front) and 170 x 80mm (rear)
- Onboard Battery: 6V 3000mAh Nicked Metal Hydride with short circuit protection
- Throttle servo: KM-2013 20KG throttle servo(from Taiwan)
- Steering servo: KM-3318 35KG steering servo
- Radio: MTD 3-channel 2.4GHz digital radio control high response system.
- Australian Mains Charger
- English Manual
Dimensions
- Vehicle Size: Length 817mm x Width 480mm x 255mm
- Net weight: 9.6KG
- Package Size：Length 870mm x Width 510mm x Height 320mm
- Gross Weight：16.7kg
- Volume Weight：23.6Kg
Included Items and Spares
- CNC machined tool kit with bag
- Spark-plug tool
- Tyre tool
- Multi-function wrench
- Fuel Mixing Bottle with mix ratios
- Huge Poster size 002 sticker
- Additional Air filter
- 3 x bottles oils for Air filter, Diff & Shock
- Spare Drive Shaft boots and small bolts and clips packet
**Please do not use Ethanol E10 Petrol with this vehicle as it will result in poor running, difficult starting along with damage to carburetor and fuel lines.**
This vehicle is fully compatible with HPI 5B, HPI SS, and HPI 2.0 baja buggy models. Most HPI stock parts and aftermarket parts are interchangeable with King Motor buggies.
The King Motor Baja KSRC-002 29 cc 1/5 Scale Gas / Petrol Powered RC Remote Control buggy is rugged enough to take just about anything you can throw at it along with providing outstanding value for money. This 1:5 scale, ready-to-run off-roader is manufactured with extreme attention-to-detail by King Motor Sport.
Note before and during use:-
- Please apply oil to the Air filter foam with the supplied oil prior to driving to prevent engine damage
- Ensure on car battery is fully charged prior to every use
- Use 25:1 Ratio 40ml of 2 Stroke Oil mixed with 1 litre of 91 or 95 Octane fuel
- Use only good quality 1.5V Alkaline batteries in the remote. Never use rechargeable batteries
- Ensure all wheel nuts are tightened and check all suspension bolts and components before every drive
