SKYRC B6 Nano Charger - SK-100134

SKYRC B6 Nano Charger - SK-100134

by technohobbies.com.au
$99.95

SKYRC SK-100134 B6 Nano Charger


This SkyRC B6 Nano charger might be compact but it's packed full of features such as built in bluetooth, SkyRc APP compatibility, charge's up to 15A and has touch buttons!

Specifications

  • Input: 9 - 32v
  • LiPo: 1-6S
  • Battery chemistry supported: LiPo

Please Note - This charger DOES NOT come with an AC power supply, in order to power the SkyRc Nano B6 charger through A/C 240v you will need to purchase a additional power supply.

SK-100134 - SKY RC Nano Charger

The stronger aspiration to develop a better charger for hobbyists is the creation source of B6 nano. In the premise of artistic product design, internal Bluetooth module confers B6 nano on its ability to be controlled by APP.
With B6 nano, charging becomes faster and more pleasant.

Capacitive Touch Button
B6 nano adpots touch button, advantages of which are sturdy and durable, quick-responsive and easy operation. Charging is no more rigid.

Powerful, Tiny, Smart, that is it!

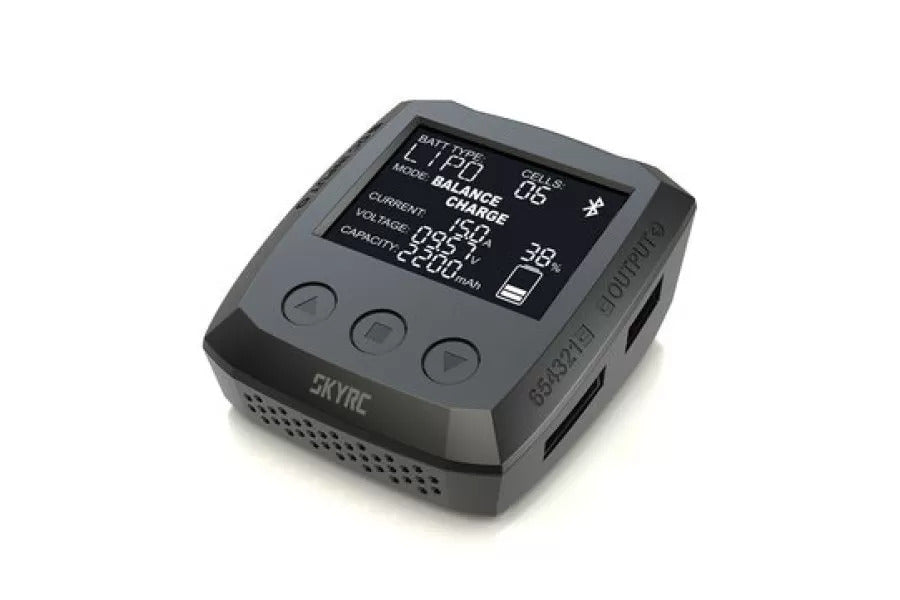

B6 nano is highly optimized in firmware and structure, while monster power is delivered from such a tiny body. Black screen and touch button contribute to better overall experience on visualization and portability.

Case Size: 76x85x37mm Weight: 130g

Powerful and High Speed Micro Controller
ARM® Cortex®-M4F 32 bits high speed processor, data process capability improves 20 times. Using industry leading 2.5V-5.5V wide range input voltage, has strong anti-interference ability.

Smart & Efficient Cooling System
Temperature controlled 16000rpm high speed sleeve bearing cooling fan effectively blows the air through the extruded aluminum heat sink, effectively cooling the device.

No more scrolling through complex menu, what you see is what you need.

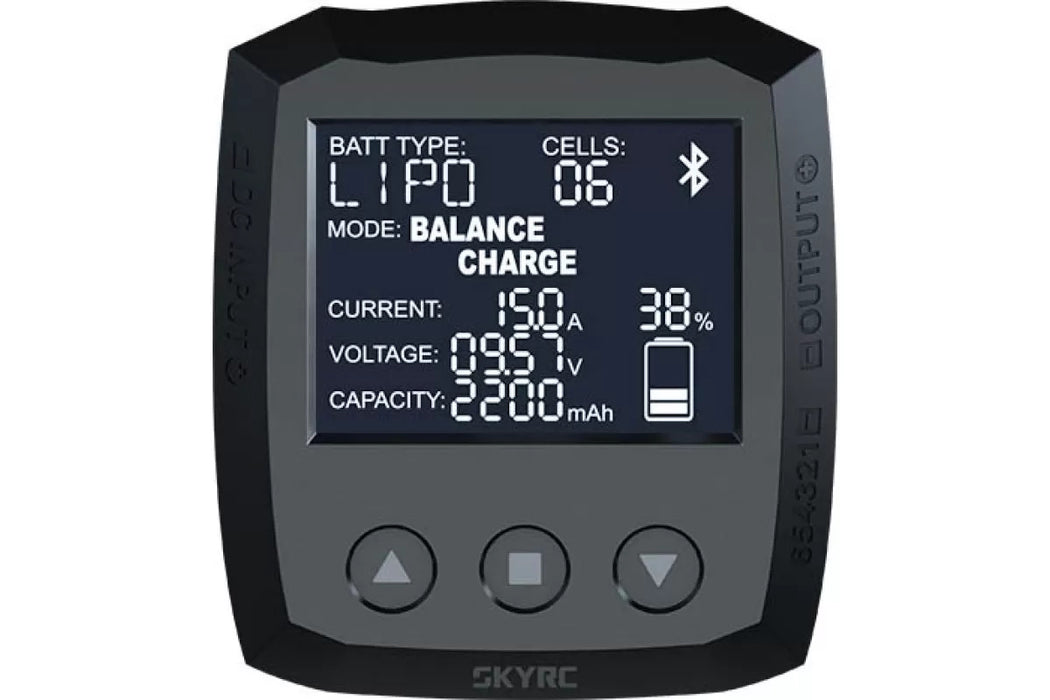

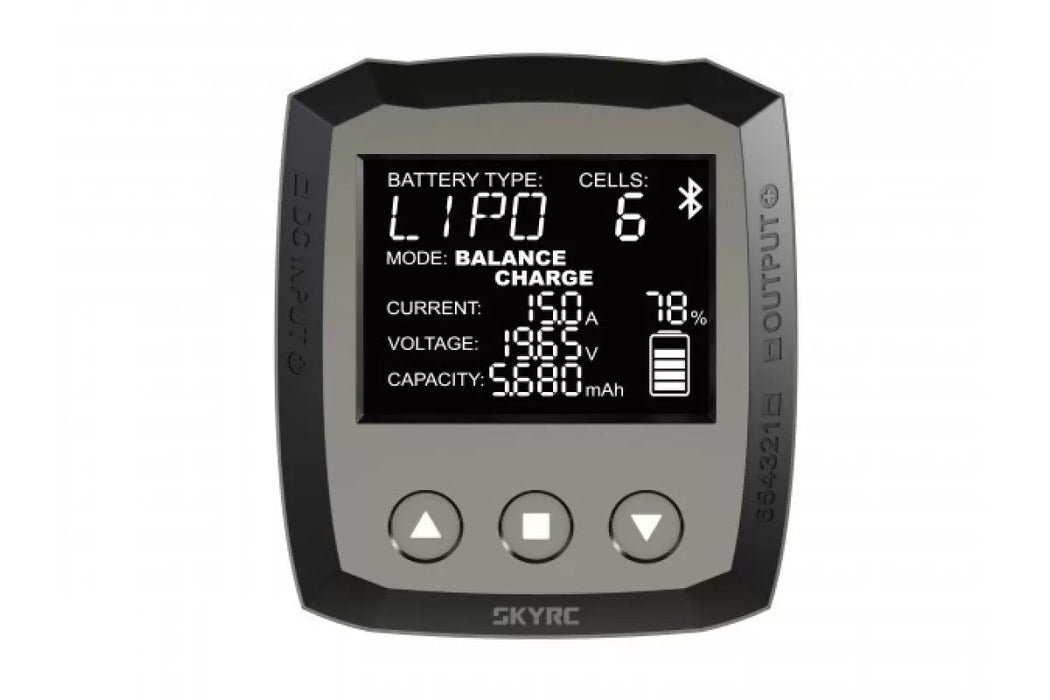

Large black screen, active visual size is 50*37.5mm, all information at a glance.

SCAN TO GO

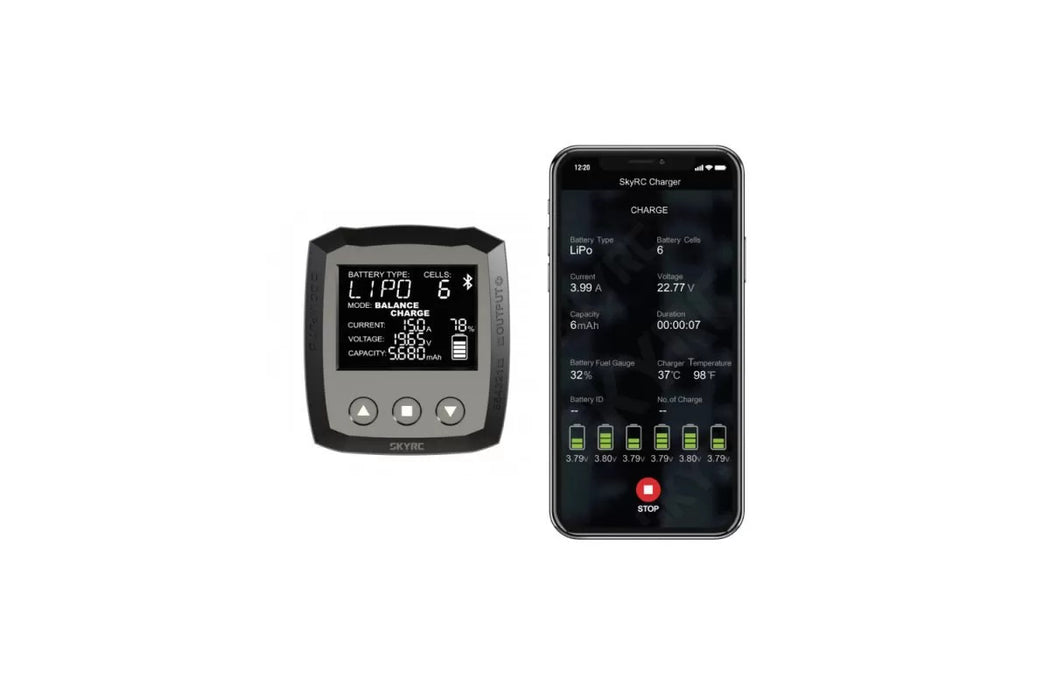

The innovative Bluetooth Smart technology makes controlling your charger a breeze with your smartphones.

Specification

Power
DC Input Voltage : 9-32V
Charge Wattage: 320W
Discharge Wattage: 5W

Battery
BatteryTypes/Cells:
LiPo/LiIon/LiFe/LiHV:1-6cells
NiMH/NiCd: 1-15cells

Battery Capacity Range:
NiMH/NiCd:100-50000mAh
LiPo/LiIon/LiFe/LiHV:100-50000mAh
Pb: 100-50000mAh

Charge and Discharge
Charge Voltage
NiMH/NiCd: Delta peak detection
LiPo: 4.18-4.25V/cell
LiFe: 3.58-3.7V/cell LiIon: 4.08-4.2V/cell
LiHV: 4.25-4.35V/cell

DischargeCut-offVoltage
NiMH/NiCd:0.1-1.1V/cell
LiPo:3.0-3.3V/cell
LiFe:2.6-2.9V/cell LiIon: 2.9-3.2V/cell
LiHV: 3.1-3.4V/cell

Charge Current: 0.1A-15.0A
Discharge Current: 0.1A-3.0A
Balance Cells: 2-6 cells
Balance Current: 1000mA/cell Max
Safety Timer: 1-720minutes off
Charge Method: CC/CV for lithium types and lead(Pb) batteries Delta-
