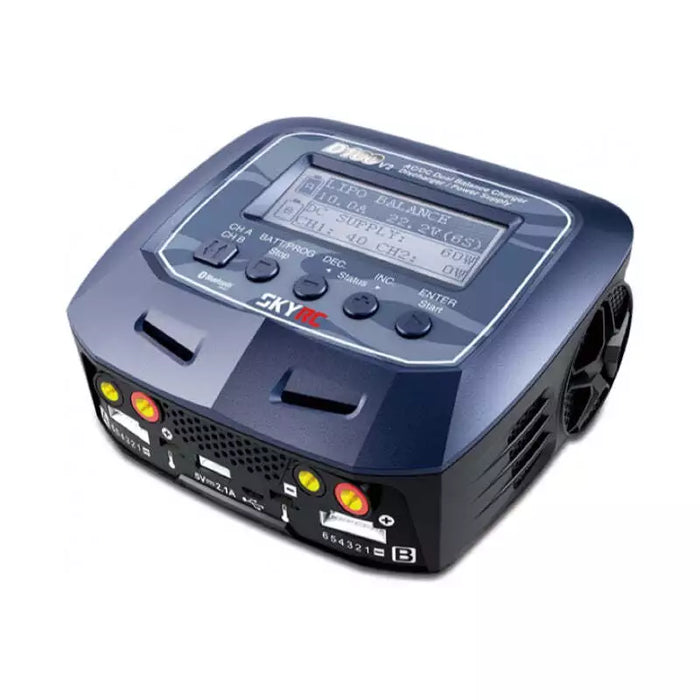

SkyRC D100 V2 AC/DC Dual Battery Balance Charger & Power Supply

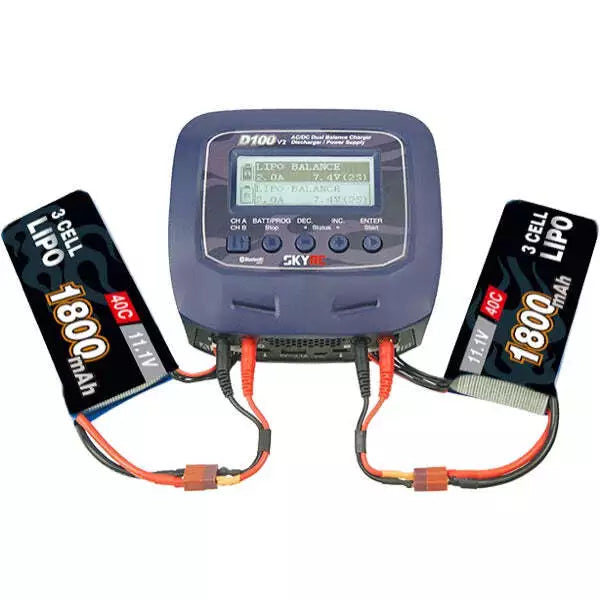

SkyRC D100 Dual Charger can charge 2 x Li-Po Batteries at the same time!

SKYRC D100 is a twin-channel charger with two independent circuits which can charge two different kinds of batteries of varying chemistry simultaneously which includes LiPo/LiHV/LiFe/Lilon/NiMH/NiCd/PB. Capable of operating as a power supply with the maximum output of 100W helps the hobbyists to power the DC equipment. With its unprecedented function of voice guide, even a freshman can use this charger without any hurdles. Additional feature including our "SCAN TO GO" either..

It also supports power distribution in AC mode to get max charging power to shorten charging time. What's more, users could set the terminal voltage by themselves and connect it to PC for PC control and firmware upgrade. Besides that, users could also use it as Lithium Battery Meter and Battery Internal Resistance Meter. There are Automatic Charging Current Limit, Capacity Limit, Temperature Threshold and Processing Time Limit which makes the charger safe to use.

Features

COMPATIBLE WITH VARIOUS BATTERIES

With 2 independent circuits, it is capable of charging 2 batteries of various chemistries (LiPo/ LiFe/ LiIon/ LiHV/ NiMH/ NiCd/ Pb) at the same time.

POWER DISTRIBUTION

The charger supports power distribution between CHA/CHB and PSU Within the total power of 100W in AC mode.

VOICE GUIDE

A speaker loaded with English guidance has been installed which makes the charger more user friendly and helps reducing mis‐operation.

LIHV MODE AVAILABLE

The LiHV mode is able to charge the new generation of LiPo batteries with a maximum voltage of 4.35 V.

DC POWER SUPPLY

Capable of supplying 100W DC power dramatically expands its usage scope. That is really convenient for drivers to power their DC devices, such as tire warmer, PIT light etc.

CREATE A QR CODE

SkyRC D100 v2 features a unique function of SCAN TO GO. To fully experience that function, a QR code has to be created first inside the SkyCHARGER APP. Follow below video to create the QR code.

SCAN TO GO

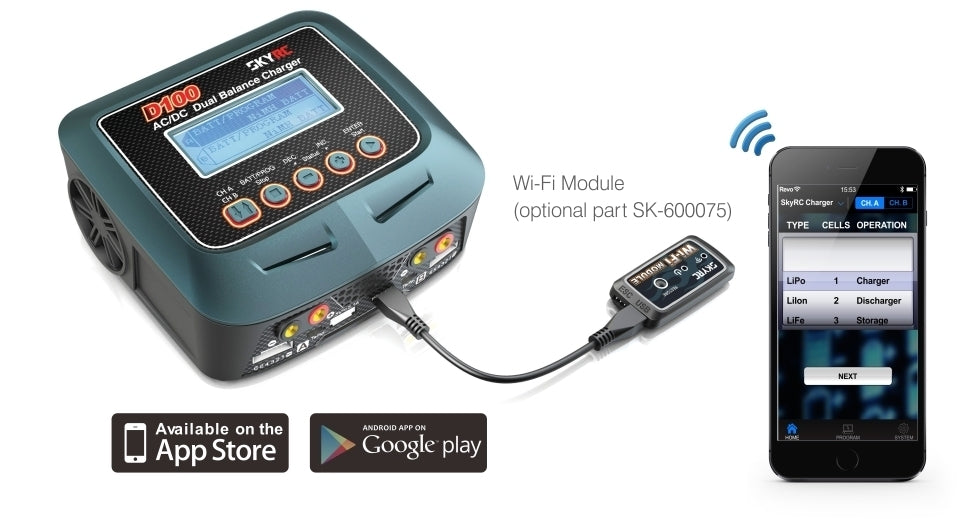

The Bluetooth 4.0 connectivity allows the user to remote control and monitor the D100V2 comfortably through an app on a portable device such as smartphone, iPad, or iPhone. The iOS app can be downloaded from iTunes Store, the Android app from Google Play Store.

APP CONTROL

Smart phone control & monitor via Buletooth 4.0( both iOS and Android)

PC SOFTWARE

Charge Master 3 can start/stop process, and view real-time graphs of current, voltage, capacity and temperature, also monitor single cell voltage

Specifications

• Net Weight 975g
• Input Voltage AC100-240V / DC 11-18V
• Charge Circuit Power DC Input 2 x 100W
• AC Input 100W (Support Power Distribution)
• Discharge Circuit Power 2 x 10W
• Charger Current Range 0.1-10A
• Discharge Current Range 0.1-5A
• Current Drian for Balancing Port Max 200mA/cell
• Trickle Charging Current 30mA-300mA & OFF
• LiPo/LiFe/Lilon/LiHV Battery Cell Count 1-6S
• NiMH/NiCd Battery Cell Count 1-15S
• Pb Battery Voltage 2-20V

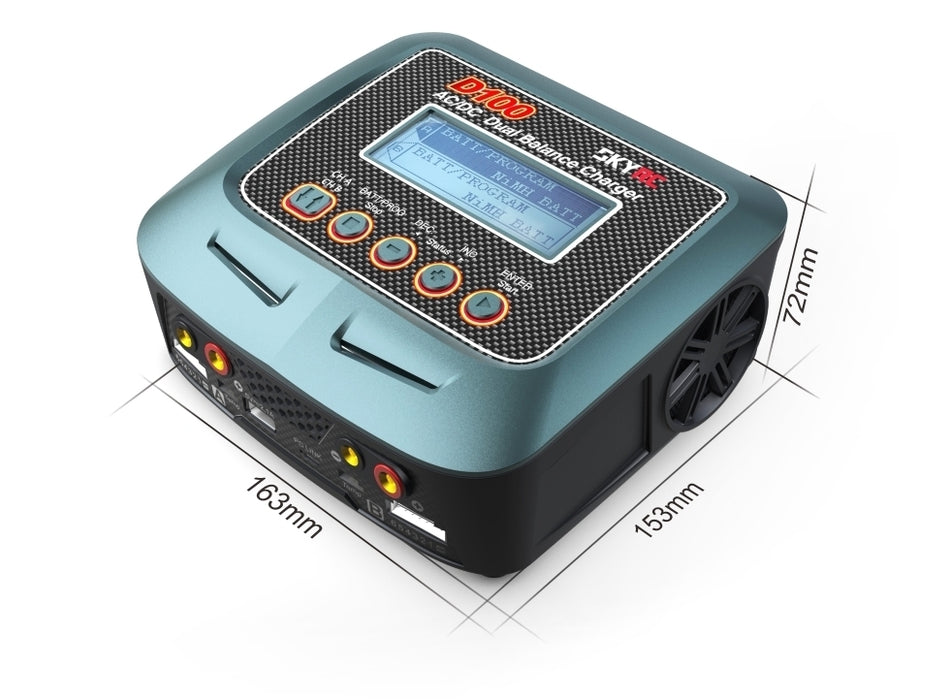

• Case Size: 140 x 153 x 67mm

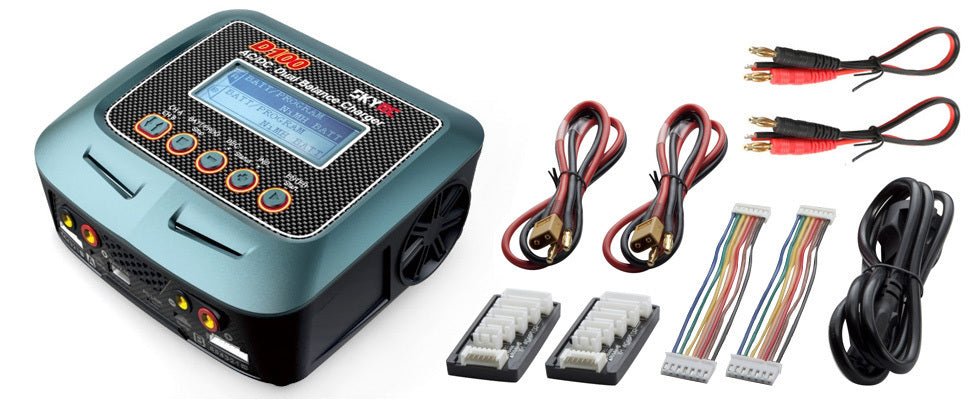

CONTENTS

• D100v2 Smart Charger
• 2 x External XH Balance Boards
• 2 x Banana connectors with XT60 Charging Leads
• 2 x Bare Wire Charging Leads
• AC Power Cable
• User Instruction Manual
