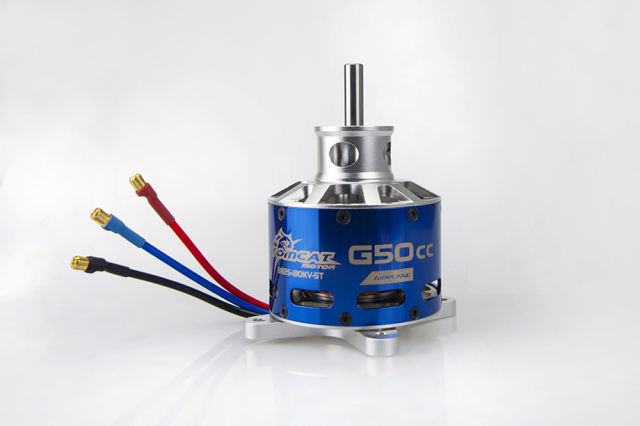

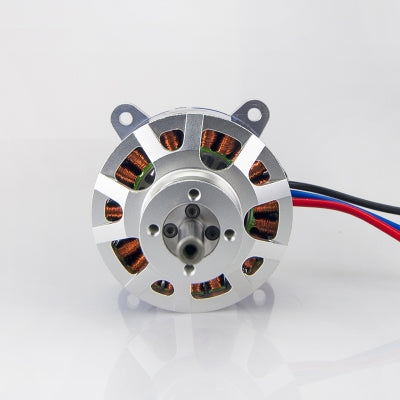

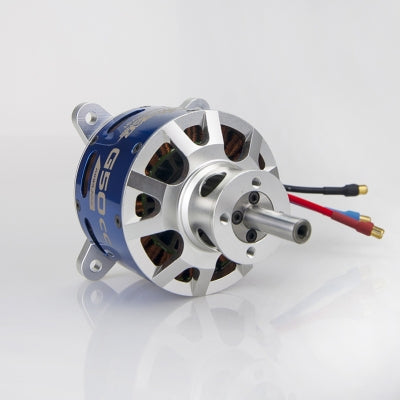

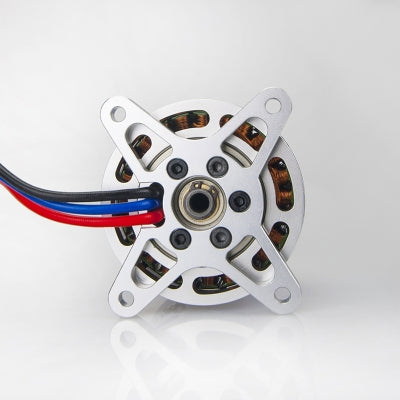

Tomcat G50cc Motor for RC Airplane

Overview

The Tomcat G50 Motor is a designed to power 50-70cc size planes. Run this motor on 12 cell Lipos and match it with an ESC of 160 Amps. Motor is rate up to 6000 Watts, with a suggested max amp draw of 130 Amps (150 Amps Burst).

Specifications

G50cc 8825-180KV 12 Cell Lipo

Weight: 45.15 oz (1280g)    88mm Diameter    Shaft: 10mm

• Type：	TC-G50cc-8825-KV180 (G50cc)
  KV(rpms per volt):	180
  No load current:	3.8A @10V
  Resistance:	0.02 ohms
  Watts:	up to 6000
  Continuous Current:	130A
  Max Burst Current:	150A,10seconds
  Cells:	12S Li-Po
  Recommended Props:	24x10 to 25x12
  Slots,Poles:	24,20
  Diameter:	88 mm
  Diameter of Shaft:	10 mm
  Weight:	1280 g
  Brushless ESC:	160A
