All New TRAXXAS FORD F-150 RAPTOR

The new 2017 Ford® Raptor replica from Traxxas takes you off-road with a whole new level of scale realism. The sleek Raptor body is fully detailed with an injection molded nylon composite grill and front bumper to truly capture the depth and detail of Ford's original design. Integrated hood vents and side mirrors complete the look. The heavy-duty body is extra tough for all your off-roading adventures.

Modified Muscle

The Titan 12T 550 modified motor is designed for incredible mod-motor power output with virtually maintenance-free operation and long-lasting performance. The Titan 12T 550 motor's integrated cooling fan pulls cool air through the motor to keep temperatures down. Airflow is routed through vent tunnels molded in the motor plate. A cooler running motor equates to faster speeds, longer runtime, and extended motor life. The XL-5 Electronic Speed Control offers high current handling, EZ-Set^®one-button setup, and smooth high-frequency control. Three drive profiles, low voltage detection, thermal shutdown protection, gold-plated connectors, and incredibly low resistance are all features you might expect to only be available on an expensive replacement ESC. As today's batteries store more and more energy inside their cells, traditional battery connectors could no longer keep up. The included patented Traxxas High-Current Connector opens the door for unrestricted current flow.

Brushless Ready

The full-size Ford Raptor is built for extreme horsepowerxso is the Traxxas model! Velineon brushless horsepower (sold separately) simply bolts in to boost speed to 40+mph. Add 11.1V Traxxas Power Cell LiPo batteries and you have the potential to double your speed--over 60mph! Bigger roosts and longer hang-times are right at your fingertips. The included steel transmission gears, full ball bearings, and high-quality metal turnbuckle links are the winning setup for brushless durability. The factory-installed planetary differential is Traxxas-tough with hardened steel gears that never need adjusting! Perfect for long-lasting, all-day fun. Accessory battery hold downs are available for use with large capacity LiPo battery packs that can extend speed and run time. Compare the durability and features to others and you'll see that only Traxxas makes them truly brushless ready.

XL-5 Waterproof Electronic Speed Control

Designed and engineered by Traxxas, the XL-5 Electronic Speed Control handles the elements while smoothly supplying power to the motor. This high-performance ESC is packed with impressive specifications that are normally only found on more expensive high-end replacement units. The XL-5 features a completely waterproof design, low voltage detection, three throttle profiles, Thermal Shutdown Protection, 4-7 cell compatibility, and built-in BEC. High frequency operation combined with ultra-low resistance make the XL-5 an efficient and ultra-smooth fully proportional speed control. An exclusive feature on the XL-5 is the patented Training Mode. This profile reduces the overall power output of the XL-5 by 50% making it easier for young or new drivers to develop their control skills before unleashing full-power operation. The XL-5 is manufactured by Traxxas to ensure the highest level of quality and support.

• Innovative waterproof design
• LiPo and NiMH compatible with two-stage low-voltage detection
• Three Drive Profiles
  • Sport Mode - Forward / Brake / Reverse
  • Race Mode - Forward / Brake
  • Training Mode - 50% Forward / Brake / 50% Reverse (patented)
• 12-Turn motor limit for 550 size motors
• 15-Turn motor limit for 540 size motors
• Integrated on/off switch
• Traxxas EZ-Set^®one-button setup
• High-efficiency MOSFET transistors
• Click here for more info

Titan^®12-Turn 550 Modified Motor

The powerful Titan 12T 550 modified motor features an over-sized armature (30% larger compared to 540-sized armatures) with 12-turns of pure copper wire for big torque and increased power-handling capabilities. Lower running temperatures are achieved with an integrated cooling fan. The Titan 12T requires very little maintenance and is designed for consistent torque and high speeds from run to run, without fading.

Beyond the specs, the Titan 12T is made for dirt-roosting torque, lightning-quick acceleration, big-air jumps, and just about any other 4-wheel fun that demands real horsepower. Be sure to check out the videos to see it in action!

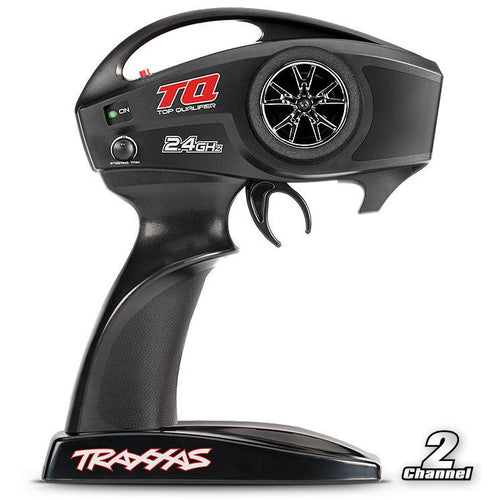

Precision 2.4GHz Control

Switch on the power and drive! That's all there is to it with the TQ 2.4GHz radio system. There are no frequencies to manage, so the focus is on having fun. Race multiple vehicles side by side without interference. The TQ's advanced programming provides long-range control with smooth, glitch-free performance. The TQ's ergonomic design is comfortable for all day driving with an internal antenna that is impervious to damage.

Traxxas Power Cell NiMH Battery with iD^®

The Traxxas Ford F-150 Raptor replica includes a genuine iD-equipped Power Cell NiMH battery to make sure you experience all the performance that's been engineered into your Traxxas model. Accessory Traxxas iD chargers (sold separately) auto-detect Traxxas iD Power Cell batteries and automatically set and optimize charge settings for unmatched charging safety and simplicity. Traxxas iD Power Cell packs are optimized for free-flowing power and maximum punch with premium quality, low-resistance cells; flexible, silicone-jacketed 12-gauge wire; heavy-duty welded tabs; and Traxxas' high-output, gold plated, patented, High-Current Connectors. Precision assembly with attractive, individually wrapped cells and clear overwrap complete the Traxxas Power Cell package. For even greater speed and runtime, a full line of optional Traxxas iD Power Cell NiMH and LiPo batteries are available. Power Cell batteries are Traxxas certified to maximize the performance and speed engineered into every Traxxas vehicle. Learn more about Traxxas Power Cell NiMH and new LiPo Batteries here.

Traxxas 4-amp DC Peak Detecting Fast Charger

For quick, convenient, hassle-free charging, a 4-amp DC Peak Detecting Fast Charger is included to maximize runtime and minimize down time. The included NiMH charger uses a 12-Volt DC power outlet for universal high-output charging. The brilliant LED provides charging status as soon as the battery is connected. The charger is optimized for charging your Traxxas iD Power Cell NiMH battery. Peak-detection circuitry makes sure the battery receives a full charge every time. The status LED flashes green to indicate when charging is in progress, then turns solid green when charging is complete for foolproof charging, peak performance, and maximum runtime.

Traxxas High-Current Connectors

Designed to handle high-current applications and funnel maximum power to the electronics, the electronic speed control and battery are equipped with Traxxas High-Current Connectors. Engineered with iD technology, the included 3000mAh NiMH battery is optimized when charged with a Traxxas iD charger (sold separately). Traxxas iD chargers automatically configure and optimize the charger settings for a perfect charge every time. Traxxas iD chargers provide the quickest, safest charge for your battery so you can unleash the maximum power and runtime for your Traxxas vehicle.

Digital High-Torque Waterproof Steering Servo

A high-performance truck needs a powerful steering servo for responsive performance. The waterproof steering servo (#2075) uses O-ring seals to keep the fun going when things get wet. The Traxxas digital high-torque servo provides precise steering authority and speed for wheel-to-wheel racing in the back yard or on the track.

Sealed Watertight Receiver Box

The patented sealed receiver box is another Traxxas innovation that puts the Ford Raptor and all the Slash models in a league of their own. The antenna and servo wires route neatly through a special water-tight seal. A custom blue O-ring seals the receiver box to protect the receiver from water. The receiver can be removed for service and aftermarket receivers can be installed without losing the sealing properties of the box. An aluminum antenna crimp nut looks good and holds the antenna tube securely in place.

3-channel Micro Receiver with Fail-Safe Security

The TQ 2.4GHz micro receiver fits easily into almost any vehicle, and features dual channel-1 steering outputs. The integrated LINK button makes it fast and easy to bind the receiver, and the two-color LED indicates power-on and bind status for fool-proof control and convenience. In the event of signal loss due to an accidental transmitter switch-off or depleted batteries, the receiver will automatically return the throttle to neutral and hold the last commanded steering position. The Fail Safe programming is conveniently built-in and does not need to be set or activated.

Securely Mounted Electronics

The ESC, receiver, and steering servo are screwed to the chassis for ultimate mounting security. There's no servo tape to loosen over time from dirt, heat, water, and collisions.

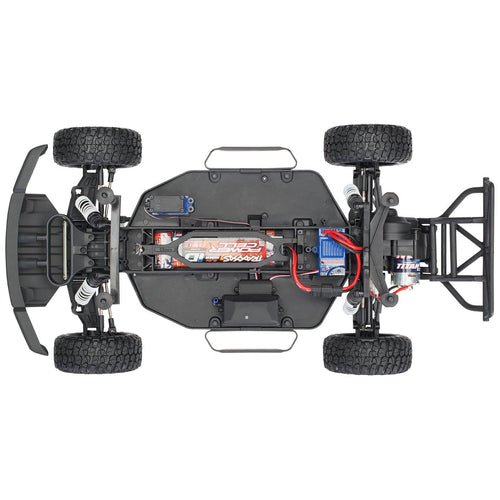

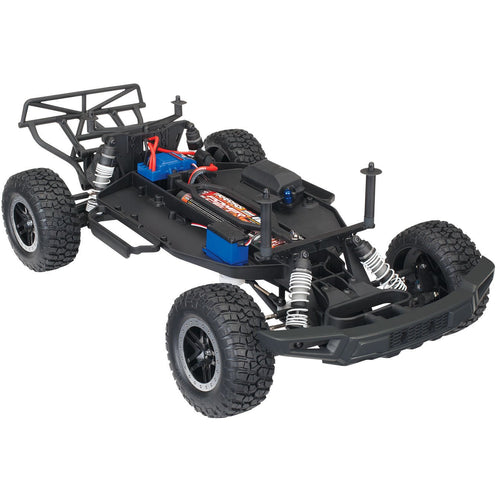

Long-Wheelbase Chassis

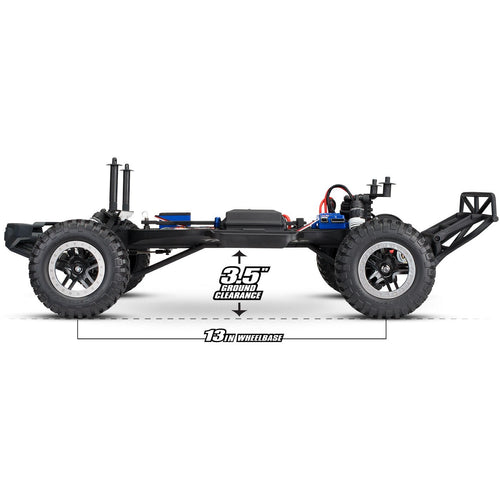

The Ford Raptor's chassis is shared with the award-winning Slash and features a 13.2 wheelbase, over 3.5 inches of ground clearance, and is molded in black for a tough new look. The chassis includes drain holes and a battery tray channel for routing servo wires to the receiver. Optional electronic speed control mounting bosses are incorporated into the chassis, making it easy to upgrade to the Extreme Power of the Velineon Brushless Power System. For race track competition, a transponder mount is located under the front shock tower when every second counts.

Adjustable Battery Hold Down

The unique chassis design allows the use of 6-cell stick or side-by-side style battery packs and 7-cell stick, side-by-side, and hump battery packs for unmatched versatility. The extended chassis enables the various battery packs to be positioned forward or backward for front/rear weight bias tuning. An optional battery hold down kit is available for use with oversized batteries.

Chassis Nerf Bars and New Body Mounts

Integrated chassis nerf bars offer side body support for door to door racing action and impact protection. Ruggedly designed body mounts incorporate reinforced washers to support the short course truck body during big-air jumps and high-speed runs.

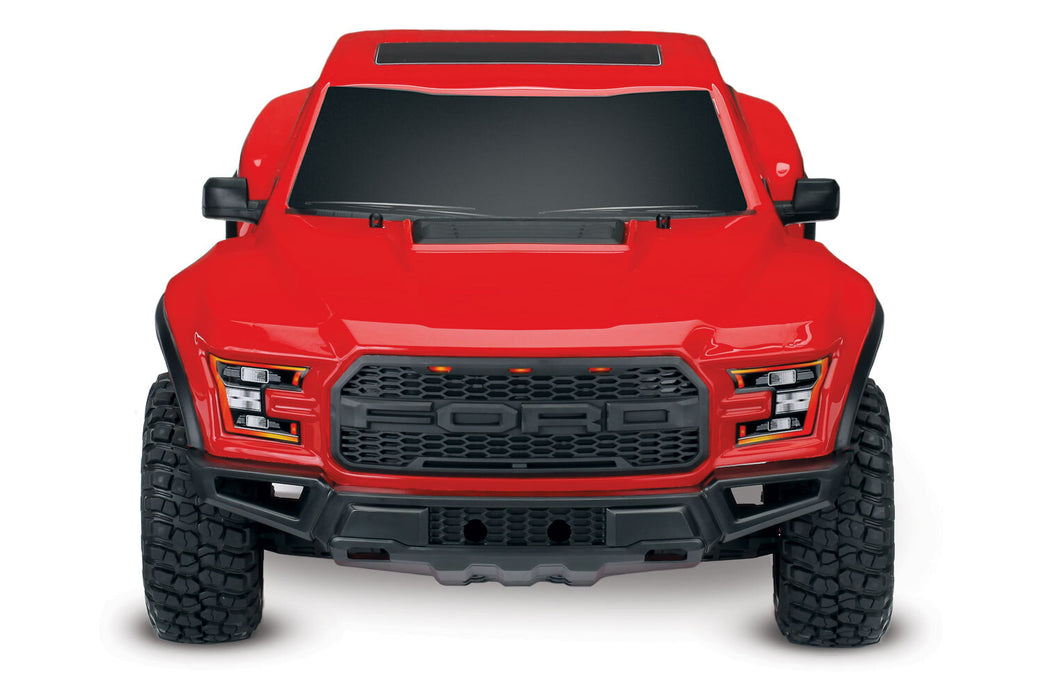

Scale Front Bumper

Engineered to handle the abuse of bumper to bumper bashing, the integrated front bumper is designed to absorb brutal impacts while looking the part of an aggressive off-road-ready truck.

Scale All-Terrain Tyres

Realistic looks, realistic performance. The rugged tires have excellent grip in the dirt, just the right amount of slide on pavement, and are mounted and pre-glued on impressive 2.2" wheels with distinctive satin "beadlock" rings and black split-spoke centers.

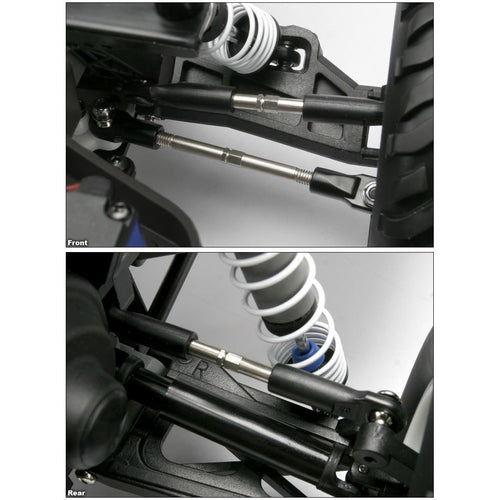

Adjustable Steel Turnbuckles

Factory fitted, heavy-duty steel turnbuckles allow camber and toe tuning. The suspension is completely adjustable right out of the box to fine tune handling agility and high-speed performance. Captured rod ends provide unmatched durability and they simply won't pop off.

Metal Gear Magnum 272 Transmission

The proven Magnum 272 transmission is assembled with all metal gear internals riding on ultra-smooth sealed ball bearings. Combined with the smooth 48-pitch gears, power is delivered to the rear wheels via durable telescoping U-joint driveshafts for maximum efficiency and articulation. The bulletproof Torque-Control slipper clutch and metal gear Magnum transmission are ready to handle any power system upgrade including the Extreme Velineon Brushless Power System.

Steel-Composite Planetary Gear Differential

The composite Traxxas planetary gear differential now features a steel ring gear with a nylon housing for long life. It uses hardened steel internal gears for maximum strength during rigorous off-road bashing. This type of differential requires virtually no maintenance and its efficient design puts maximum tire-shredding torque to the wheels.

Torque-Control Slipper Clutch

The Torque-Control slipper clutch uses special semi-metallic friction material and finned aluminum alloy pressure plates to dissipate heat and provide consistent traction control. The semi-metallic friction material remains stable across a wide temperature range to provide smooth, linear engagement you can count on, run after run. Spur gears can be removed and replaced without altering the slipper adjustment.

Motor Mount with Integrated Cooling Channels

The sealed gearbox protects the transmission components from dirt and rocks. The molded motor plate includes finned cooling channels where the motor mounts to the motor plate. The cooling channels work in conjunction with the internal Titan 12T motor fan to pull air through the motor for superior cooling.

Heavy-Duty Yokes with Telescopic Driveshafts

The Ford Raptor features heavy-duty drive yokes which are designed to provide maximum durability to withstand extreme power. The slider driveshafts are extremely durable, and they allow greater articulation for increased suspension travel.

Included Optional Pinion Gear

The Ford Raptor reaches its blistering 30+mph top speed on-road using the optional 23-tooth pinion gear (included) and a 7-cell 8.4V battery pack. Out of the box, the installed 16-tooth pinion gear is just right for all-around, on- or off-road action.

Hex Hardware

Pro-quality, high-grade, metric hex-drive hardware is used throughout for extra strength, and easy maintenance and repair. The black-oxide rust-resistant finish provides a high tech look and feel.

Heavy-Duty Hub Carriers Steering Blocks

The Ford F-150 Raptor replica features heavy-duty ball bearing front steering blocks and rear hub carriers. They utilize large 5x11 mm ball bearings for long-term precision performance, smooth operation, and increased durability.

Rubber-Sealed Ball Bearings

Precision rubber-sealed bearings offer the ultimate in super low-friction performance and maximum protection in dusty environments. They are used in all exposed locations on the truck and are virtually maintenance free.

Oil-Filled Ultra Shocks

Proven performers, the Raptor's oil-filled Ultra Shocks utilize X-ring technology for a perfect seal and super-smooth performance. They are fully tunable with a wide range of oils, springs, and pistons. Features include pressure bladders for air/oil separation and spring clips to precisely change the ride height and spring pre-load. They can be renewed in minutes with our inexpensive rebuild kits.

Progressive Rate Powder Coated White Springs

The race-tuned progressive rate springs soak up the small bumps as a softer spring would, but when the conditions get rough and the jumps get big, the progressive rate springs step up to the challenge by getting firmer as the suspension is compressed. The long-lasting, white powder coated finish accent the Raptor's rugged off-road styling.

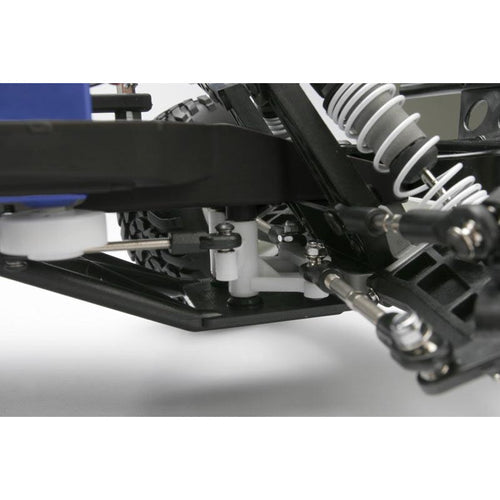

Bellcrank Steering

High-performance bellcrank steering system minimizes bump steer to increase cornering stability.

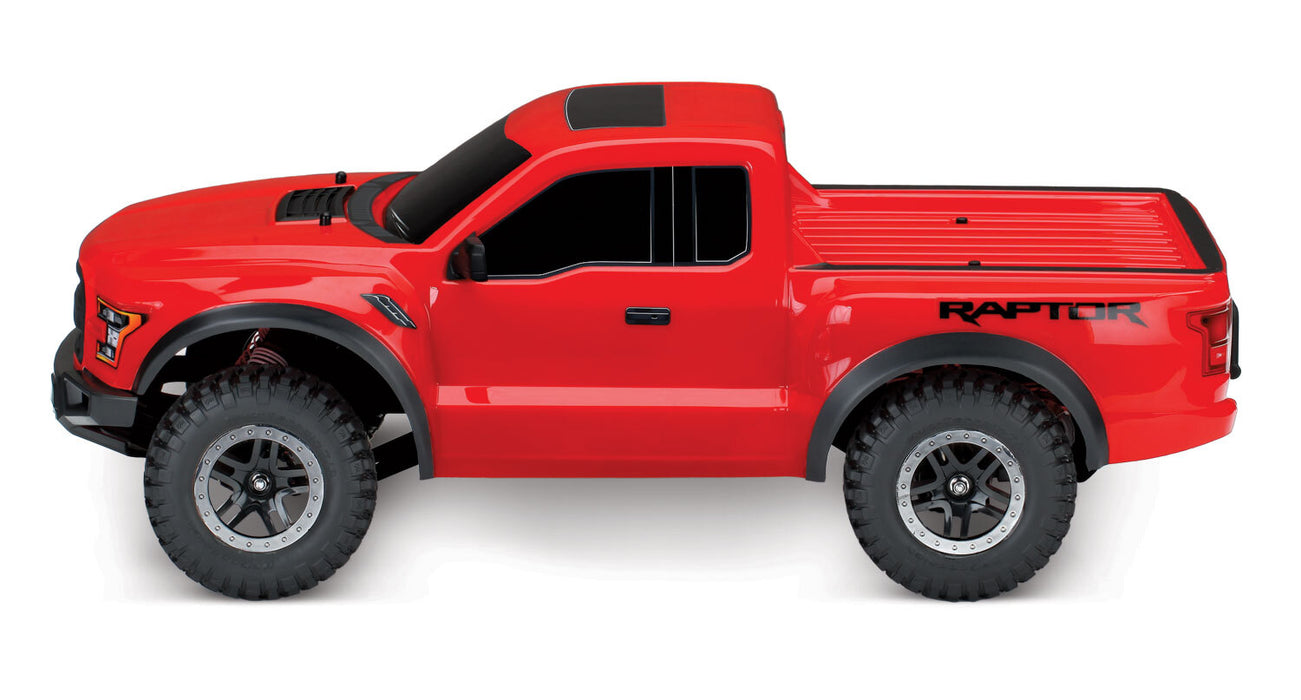

Officially Licensed Replica Body

No need for a paint or sticker session; the Ford F-150 Raptor rolls out of the box ready for action with a factory-finished with decals already applied for you, so it's Ready-to-Race^®

Features

• Officially licensed Ford F-150 Raptor body and graphics
• Traxxas 4-amp DC Peak Detecting Fast Charger
• Traxxas Power Cell NiMH Battery with iD^®
• Top speeds in excess of 30mph using the included optional 23-tooth pinion gear*
• Traxxas' exclusive patented Training Mode
• Powerful Titan^®12T 550 modified motor with internal cooling fan
• Race in dirt, mud, water, and snow thanks to Traxxas' innovative water-sealed electronics
• TQ 2.4GHz transmitter
• XL-5 Waterproof Electronic Speed Control
  • Innovative water sealed design
  • High current handling
  • Forward/reverse/brake
  • Smooth high-frequency control
  • EZ-Set^®push-button setup
  • Thermal shutdown protection
  • LiPo, and NiMH compatible with two-stage low-voltage detection
  • Integrated on-off button
  • Three easy-to-program drive profiles
  • High efficiency MOSFET transistors
  • Equipped with patented Traxxas High-Current Connectors
• Digital high-torque waterproof steering servo
  • 125 oz-in of torque and 0.16-second speed
• O-ring sealed watertight receiver box keeps the micro receiver dry
• Speed control and receiver are securely fastened to chassis
• Long-wheelbase fiber-composite chassis
  • 13.2 inchwheelbase
  • Over3.5 inchesof ground clearance
• Easy access battery compartment
• Adjustable battery hold down accepts 6 and 7-cell flat packs and 7-cell hump packs
• Chassis nerf bars absorb impact and support the body
• Scale front and rear tube-style bumpers
• Body mounts incorporate reinforced washers for additional body support
• Efficient Magnum 272 metal-gear transmission with ball bearings
• Sealed gearbox protects the transmission with beefed up motor guard for extra protection
• Torque-Control slipper clutch system
• External gear cover with easy slipper access
• Reliable composite planetary gear differential with a steel ring gear
• Heavy-duty telescoping U-joint driveshafts and yokes
• Adjustable steel turnbuckles and captured rod ends
• Captured rod ends won't pop off for superior durability
• Precision hex hardware throughout
• Efficient rubber-sealed ball bearings
• Fully adjustable Ultra Shocks with X-ring technology
• Progressive rate white powder coated shock springs feature a race-tuned responsive spring rate
• Aggressive all-terrain scale tires include performance foam inserts and they come pre-glued on 2.2" split-spoke wheels with satin-chrome "beadlock" detail
• The Traxxas Ford F-150 Raptor is backed by unparalleled Traxxas support and parts availability

Specifications

• Length­: 22.36 inches (568 mm)
• Front Track: 11.65 inches (296 mm)
• Rear Track: 11.65 inches (296 mm)
• Weight: 76.2 ounces (2.16 kg)
• Height:  (overall)8.425 inches (214 mm)
• Wheelbase: 13.2 inches (335 mm)
• Front Shock Length: Long
• Rear Shock Length: XXLong
• Front Tyres: Scale All-Terrain; 2.2"
• Rear Tyres: Scale All-Terrain; 2.2"
• Front Wheels: 2.2" Satin-Finish "beadlock" with black split-spoke center
• Rear Wheels: 2.2" Satin-Finish "beadlock" with black split-spoke center
• Speed Control Type: Waterproof XL-5 ESC
• Motor: (electric)Titan® 12T 550 (12-turn)Gear Ratio (internal)2.72 (final drive: 12.58)
• Differential Type: Steel Composite Planetary Gear Pitch 48-Pitch
• Transmission: Metal Gear Magnum 272 Steering Bellcrank
• Chassis Type: Modified Tub Chassis Material-Composite Nylon Center
• Ground Clearance: 3.5 inches (89 mm)
• Top Speed 30+mph* 48+ Km/h
• Skill Level: 1
• Radio System: TQ 2.4GHz (2-channel)

Included Items

• Charger: Traxxas 4-amp DC Peak Detecting Fast Charger
• Included Batteries: Traxxas Power Cell NiMH Battery with iD^®Required
• Requires not included 4 x "AA" Batteries for the Transmitter
